Material 1 2311 Vs 2312 Mechanical Properties Heat Treatment Differences - China

1.2311 Material:

Test temperature: 150 °C – 34 W/(m*K)

Test temperature: 200 °C – 33, 6 W/(m*K)

Test temperature: 250 °C – 32, 9 W/(m*K)

Test temperature: 300 °C – 31, 9 W/(m*K) 1.2312 Material:

Test temperature: 150 °C – 40, 4 W/(m*K)

Test temperature: 200 °C – 40, 4 W/(m*K)

Test temperature: 250 °C – 39, 9 W/(m*K)

Test temperature: 300 °C – 39, 0 W/(m*K) The heat treatment process of 1.2311 material and 1.2312 material is two steps of quenching and tempering.

The difference is that 1.2312 steel usually requires a higher quenching temperature, and the tempering temperature of 1.2311 steel is generally between 500-700 degrees Celsius.

1.2312 material adopts Low temperature tempering, the temperature is generally between 150-200 degrees Celsius.

It should be noted that the needs and equipment of each manufacturer are different, so the temperature and time during the heat treatment process may vary, and the optimal treatment parameters need to be determined according to the specific material type and requirements.

Depending on the chemical composition and heat treatment conditions, the properties of the 1.2311 material and the 1.2312 material will also be different, so the main uses are also different.

For example, in the field of molds, 1.2311 steel is relatively low in hardness, which is suitable for some mold applications that do not require high hardness, such as for making injection molds, plastic molds and die-casting molds; while 1.2312 steel is relatively high in hardness, suitable for mold applications with high requirements on hardness and stress corrosion resistance, such as for manufacturing high-precision molds, hot die casting molds and extrusion molds, etc.

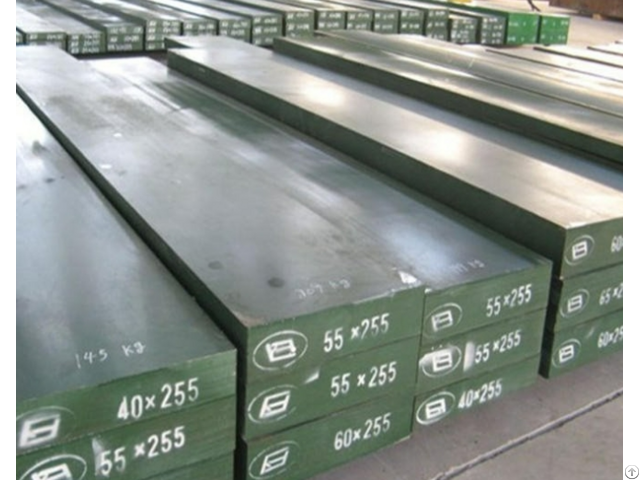

Our main products are round and flat bars for alloy steel, tool steel, stainless steel, spring steel, bearing steel and etc.

In those years we offers a wide range of high quality steel for engineering machinery, mold tooling, cutting tools manufacturing industry and etc.
