Monel 400 Sheet And Plate

MONEL alloys have excellent corrosion resistance in fluorine gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives.

At the same time, it is more resistant to corrosion than copper-based alloys in seawater.

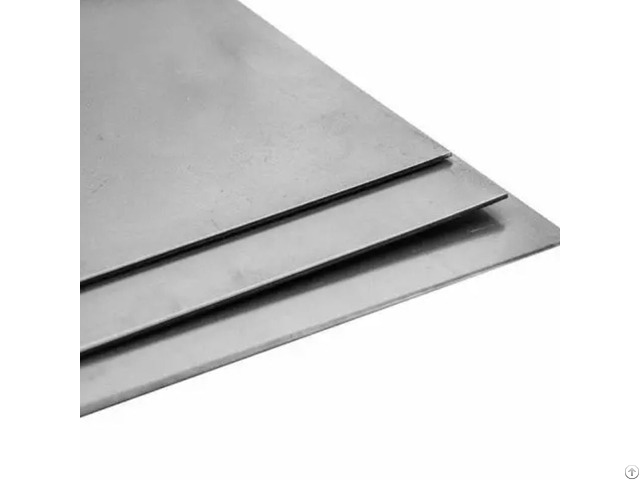

Monel 400 Sheet

Monel 400 sheet and plate are a nickel-copper alloy that is known for its strength, corrosion resistance, and versatility.

Monel 400 sheet is often used in the chemical industry for piping, tanks, and other equipment due to its resistance to a wide range of chemicals.

It is also used in marine applications, such as for propeller shafts and marine hardware, due to its resistance to corrosion from seawater.

In the aerospace industry, Monel 400 sheet is used for aircraft and aerospace vehicles due to its strength and corrosion resistance.

Monel 400 sheet is also used in electrical applications, such as for electrical wiring and connectors, due to its corrosion resistance.

It is used in a variety of industrial applications, including for pumps, valves, and heat exchangers.

In the medical industry, Monel 400 sheet is often used for implantable devices and other medical equipment due to its corrosion resistance and biocompatibility.

It is also used in the automotive industry for a variety of purposes, including as components in engine and exhaust systems.

Please contact us when you need Monel 400 sheet, the specific parameters can refer to the specification table.

Properties of Monel 400 Sheets

Nominal Room-Temperature Tensile Properties of MONEL Alloy Sheet

Grades Form Conditions Tensile Strength Yield Strength

(0.2% Offset) Elongation, % Hardness ksi MPa ksi MPa Brinell

(3000-kg) Rockwell

400 sheet Annealed 70-85 482-856 30-45 207-310 45-35 / 65-80 Cold-Rolled, Hard 100-120 690-827 90-100 621-758 15-2 / 93 min.

* plate Hot-Rolled, As-Rolled 75-95 517-655 40-75 576-517 45-30 125-215 70-96 Hot-Rolled, Annealed 70-85 482-586 28-50 193-345 50-35 110-140 60-76

K500 sheet Cold-Rolled, Annealed 90-105 621-724 40-65 276-448 45-25 / 85B max plate Hot-Finished 90-135 621-931 40-110 276-758 45-20 140-260 75B-26C Hot-Finished, Aged** 140-180 965-1241 100-135 690-981 30-20 265-337 27-37C *The ranges shown are composites for various product sizes and therefore are not suitable for specification purposes.

Hardness values are suitable for specification purposes providing tensile properties are not also specified.

**Nominal properties for material age-hardened to produce maximum properties.

What is Monel 400 sheet used for?

Chemical processing: Monel sheet is resistant to a variety of chemicals and is often used in the chemical industry for piping, tanks, and other equipment.

Marine: Monel 400 sheet is resistant to corrosion from seawater and is often used in marine applications, such as for propeller shafts, marine hardware, and pump parts.

Aerospace: Monel 400 plate is strong and corrosion-resistant, making it suitable for use in the aerospace industry for aircraft and aerospace vehicles.

Electrical: Monel alloy 400 sheet is resistant to corrosion from many acids and is often used in electrical applications, such as for electrical wiring and connectors.

Industrial: Monel sheets are used in a variety of industrial applications, including for pumps, valves, and heat exchangers.

Medical: Monel alloy plate is often used in the medical industry for implantable devices and other medical equipment due to its corrosion resistance and biocompatibility.

Automotive: Monel 400 is used in the automotive industry for a variety of purposes, including as components in engine and exhaust systems.
