Portable Load Cell Controller For Film Slitting Machine Taper Tension Control - China

Taper Tension Control Auto Tension Controller For Film Slitting Machine Auto tension controller Auto controller can automatically adjusts the output of the controller according to the needs of the tension control, to obtain a constant tension or taper tension.

It can be divided into the feedback type and calculation type and synchronous tension control type according to the principle of control settlement, B.

calculation type auto tension controller Calculating type automatic tension controller uses proximity switch, encoder testing machine speed and calculate the volume of material roll, again according to the roll diameter and setted tension to calculate controller the output current (voltage).

So as to achieve constant tension or taper tension control, it has no feedback tension and calculating model of tension controller is a kind of open loop control mode of the tension control.

After a roll winding/rewinding process is completed, whether the calculation type controller output roll diameter can be automatically return back to initial roll diameter, the calculation model controller is divided into Full automatic and semi-automatic two kinds.

Full Automatic type can be automatically return back to initial roll diameter after the completion of the rolling process, semi-automatic type needs manual operation to revert to the initial roll diameter.

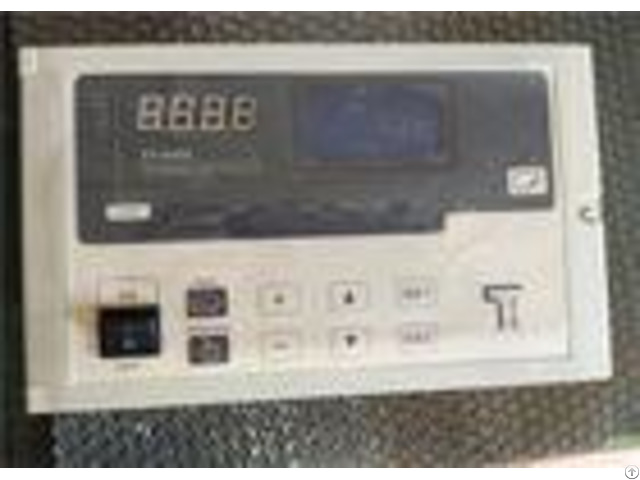

Overview Being a member of the tension controller family produced by True Engin, ST-6400R is the one with function of caculating reel diameter.

It will caculate the reel diamater full-automatically or semi-automatically depending on the method of diameter measuring.

It has both graphicLCD and LED displays with a friendly user interface as well as innovative design.

The controller has output of 0~24v/4Afor direct driving of magnetic powder brake/clutch, and a auxiliary output of 0~10v/0~5v for frequency converter, torque motor/torque motor drive, servo motor/servo motor driver and other actuators.

It is an ideal solution for tension control in industries such as paper, packaging, printing, textile printing and dyeing.

Characters: 1 - Friendly user interface with language options of English, simplified Chinese and traditional Chinese.

2 - 32 bit CPU guarantees high speed, precision, anti-jamming capability and ensures reliability.

3 - Unique function of customized parameter setting to enable convenient access to frequently used parameters.

4 - Function of erro correction to the reel diameter measurement ensures the validity and reliability of diameter caculation.

5 - Function of mechanical loss correction minimizes its interference with the tension control.

- - - - Parameters | Model | ST-6400R | Power Supply | AC 180~260V 50/60HZ | Input | Digital signal | 1 - MC0 - MC3 - MC4: Main axle A axle, B axle, proximity switch speed pulse signal ( proximity switch PNP Type, voltage supply DC24V), if select semi-automatic calcution, main axle MC0 no need proximity switch.

2 - MC1, MC5, MC6: points control signal (24V+high electric control signal) | Output | Main output | PA, PB: Two roads 24V/4A power output directly drive magnetic powder clutch or brake | Auxiliary output | SA, SB: Two roads DC0~10V/0~5V output can drive torque type inverterSynchronously, SA and PA main axle output changes synchronously, SB and PB main axle output changes synchronously.

| Outline size | 246*154*114mm | - - - - Packing(Packaging & Delivery) 1 - Standard Packing Box 2 - Packing size 31*23*18cm 3 - Gross weight: 3kg 4 - Normally we ship by Fedex, TNT, UPS or DHL.

5 - Lead time within 3 days FAQ 1 - How can you contact us? Pls contact us by email, Skype, Whatsapp.

2 - How can you place the order from us? You can let us know your detail request, we can design the best solution for you;and if you have your detail engineer drawing, pls dont hesitate to send us.

3 - What is the MOQ in our company? As for most of products, we dont have MOQ.

4 - What is your delivery time of the products? For air shaft and other customized products need time to manufacture, the delivery time is about 7~15days;For Magnetic powder brake/clutch, Air disc brake/clutch, tension control systemetc, we have stock in factory, the delivery time is 3~5days.

5 - What is your trade term? Usually we accept trade by EXW, FOB, CIFetc, you can choose the best way you would like.

If you have any other questions, please call us free!
