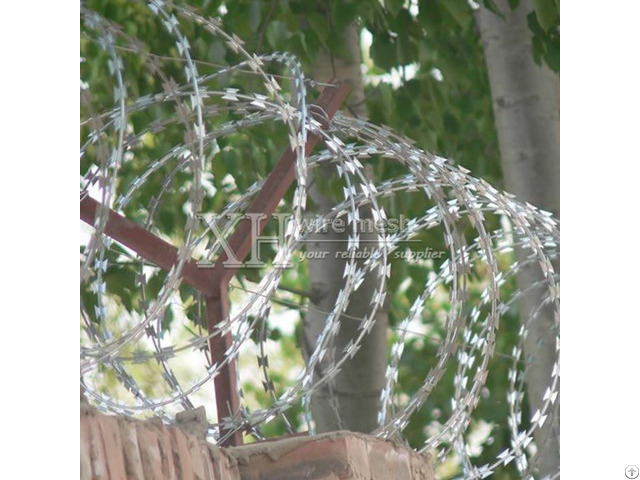

Razor Blade Barbed Wire - China

Materials: Razor blade barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensilewire.

PRODUCTS DESCRIPTION

Razor blade barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensilewire.

Razor blade barbed wire is a special product for safety protection, made of galvanized wire, PVC coated wire and stainless steel mesh material.

Razor blade barbed wire blades include fishhook blades, long blades, tearing blades, medium blades and short blades.

Razor blade barbed wire is an ideal material to protect your fields and property.

Razor blade barbed wire can be used to create effective barriers around various objects, usually for civilian, military and special purposes.

Install the razor blade barbed wire to set up a strong physical barrier with different heights, widths and thicknesses.

It is usually installed on the ground or wall, as well as welded wire fences and chain link fences.

Razor blade barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.

Two types of razor blade barbed wire:

Concertina Coil Wire

Concertina Coil Barbed Wire is also known as crossed razor barbed wire.

Two pieces of stainless steel razor wire or zinc-coatedrazor wire are bound together by clips to make it stronger.

The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

Single Coil Razor Wire

Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fencings.

Single coil razor wire is ostless and can be easily installed

Specification:

Ref.

NO.

Thickness Wire Dia Barb Length Barb Width Barb spacing

BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1

BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1

BTO-15 0.5±0.05 2.5±0.1 15±1 15±1 33±1

BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1

BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1

BTO-28 0.5±0.05 2.5±0.1 28±1 15±1 45±1

BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 46±1 Size of using:

Outside Diameter No.

of Loops Standard Length per Coil Type Notes

450mm 112 17M BTO-10 - 12.18.20.22 Concertina

500mm 102 16M BTO-10 - 12.18.20.22 Concertina

600mm 86 14M BTO-10 - 12.18.20.22 Concertina

700mm 72 12M BTO-10 - 12.18.20.22 Concertina
