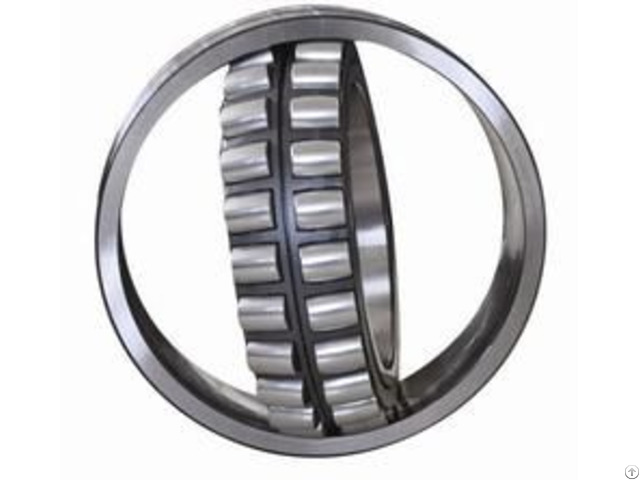

Spherical Roller Bearings 23036 W33 180x280x74mm - China

Low friction heavy capacity Spherical Roller Bearings 23036/W33 180x280x74mm Packaging Details

Box, Carton, Wooden Case+pallet

Delivery Time

3-15days Spherical Roller Bearing Spherical roller bearings are non-separable double-row radial bearings, with barrel shaped rollers.

Spherical roller bearings are double rows, self-aligning units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages.

The inner rings have cylindrical or tapered bores.

It can support axial forces in both directions and high radial forces.

They are designed for very high load carrying capacity and, since they have the maximum possible number of large and particularly long barrel rollers, are also suitable for the heaviest loads.

Brand CHIK /OEM/ NSK/KOYO .

Brands Name Spherical Roller Bearings Model 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100 Series Bearing Material Chrome steel Certificate ISO9001: 2001

Precision ABEC-1, ABEC-3, ABEC-5, ABEC-7 Bore Size 10mm-800mm Outside diameter 15mm-1500mm

Material Chrome Steel, Stainless steel Cage Type brass cage, brass retainer, steel retainer;CA alloy brass car-type cage, Mb two-piece alloy brass car-type cage, CC two-piece steel cage.

E: Third generation design to improve stress distribution for much longer service life TN: Nylon retainer.

Seals Type Open Shielded, Sealed Features high load carrying capacity;long barrel rollers;concave raceway, cylindrical or tapered bores.

groove and three lubrication holes in the outer ring for lubrication Application Papermaking machinery, slow, device, railway vehicle axle, rolling mill gear box, rolling mill roller bearing, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial deceleration machinesheavy machinery (e.g. construction and mining machines), rolling mills, gear boxes, shaker screens, etc.

Package pallet, wooden case, industrial package or as customers' requirement Price FOB, CFR, CIF Delivery Time 5-10 days

Types of spherical roller bearing: C: Stamped steel retainer and strengthened symmetric rollers for considerably higher load ratings;

CA: one piece brass retainer and strengthened symmetric rollers; exchange with C design, especially for large size.

MB: Two-piece precision-machined brass retainer and strengthened symmetric rollers; equivalent to C design in load capacity.

CC: steel cage, replace traditionalbrass cage.

E: Third generation design to improve stress distribution for much longer service life TN: Nylon retainer.

Subject Symbol Description

Radial internal clearance C2 Less than normal.

CN Normal clearance.

Is not indicated as a standard.

C3 Greater clearance than normal.

C4 Greater than C3.

C5 Greater than C4.

Other technical modifications W33 All bearings are equipped with an annular groove and three lubrication holes in the outer ring.

K Tapered bore.

Cage types C Steel cage design bearings have two stamped window-type steel cages, an inner ring without flanges and a floating guide ring centered on the inner ring.

MB Split brass cage, centered on the inner ring.

There are hard board in the center and two boards in the outer sides.

M Machined solid brass cage.

Tolerances P0 Normal tolerance level.

Is not indicated as a standard.

P6 Greater tolerance level than P0.

P5 Greater tolerance level than P6.

Others all other types are available, sush as: CW33, MW33, KCW33;KMW33;E;EK;E1, E1K;CCK/W33;

CAK/W33;EKJA/VA;EJA/VA ;EK+H We are a professional roller bearing manufacturer in China.

We offer reasonable affordable prices, Good quality& om-time delivery to you.
