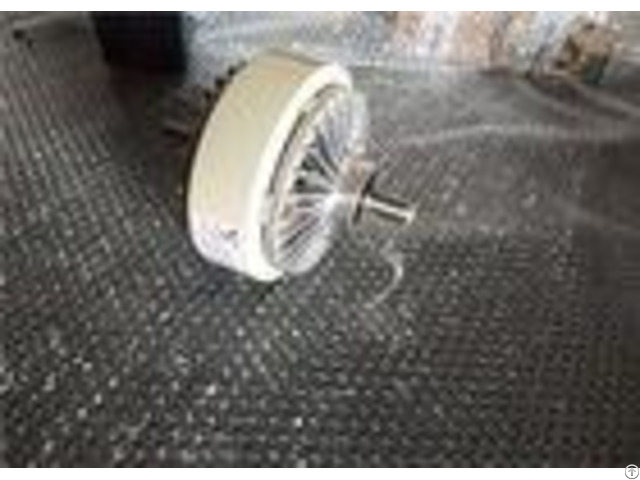

Stainless Steel Eddy Current Clutch Double Shafts 6nm 400nm For Slitting Machine - China
price: check with company for price
Double shafts magnetic powder clutch 6NM~400NM for slitting machine - - - - Item | Torque | Voltage | Speed | Max current | D1 | D2 | D3 | L1 | L2 | L3 | L4 | 6-S | d | t | R-diammeter | Deepth | Net weight | TL6A-1 | 6 | 24 | 1400 | 0.8 | 130 | 62 | 44 | 25 | 10 | 74 | 154 | M5 | 12 | 4 | M4 | 8 | 3 | TL12A-1 | 12 | 24 | 1400 | 1 | 157 | 62 | 50 | 30 | 15 | 95 | 192 | M5 | 16 | 5 | M4 | 8 | 7 | TL25A-1 | 25 | 24 | 1400 | 1.5 | 182 | 78 | 58 | 40 | 19 | 100 | 225 | M6 | 20 | 6 | M5 | 10 | 9 | TL50A-1 | 50 | 24 | 1400 | 1.8 | 219 | 100 | 75 | 50 | 22 | 120 | 269 | M6 | 25 | 8 | M6 | 12 | 14 | TL100A-1 | 100 | 24 | 1000 | 2 | 290 | 120 | 90 | 65 | 25 | 158 | 347 | M8 | 30 | 8 | M10 | 20 | 30 | TL200A-1 | 200 | 24 | 1000 | 3 | 335 | 140 | 110 | 70 | 30 | 186 | 396 | M10 | 35 | 10 | M10 | 20 | 50 | TL400A-1 | 400 | 24 | 1000 | 4 | 398 | 200 | 130 | 99 | 35 | 222 | 500 | M12 | 45 | 14 | M10 | 20 | 80 | - - - - We also have manual tension controller which can work with magnetic powder clutch, please contact me free! Featured advantages 1 - Fast response.
Dry design means instant reaction to commands.
2 - Durability.
Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.
3 - Easy to install and maintain.
Sealed bearing race eliminates the need for removal of the center core.
No dust brush is needed, and operation is simper and easier.
4 - No adjustment of the motor.
The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.
5 - Sure motion.
One-piece plate will not slip even under the strongest vibration for longer life.
6 - Adjustable torque.
Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.
