Xinghong 358 Fence - China

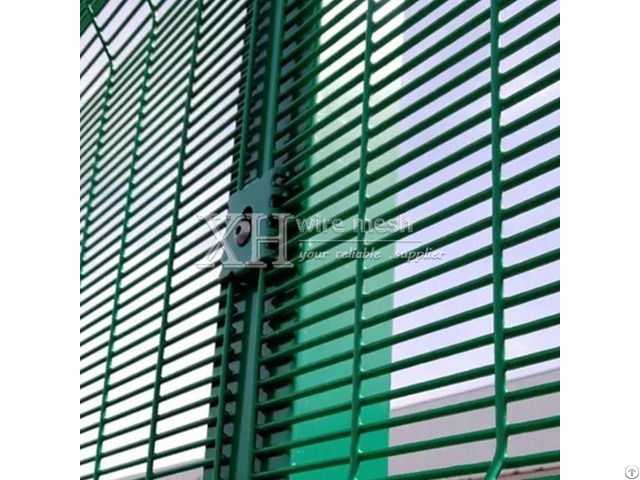

358 fence is made of a strong welded mesh plate with small meshes.

It is extremely difficult to penetrate and attack with traditional hand tools.

It has the functions of anti-climbing and anti-cutting.

PRODUCTS DESCRIPTION

1 - Product description of 358 fence

358 fence made from a type of strong welded mesh pan el with small mesh opening.

It is extremely difficult to penetrate and difficult to attack using conventional hand tools, has the features of anti-climbing and anti-cutting.

The fence name 358 fence comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.

It is recommended to use a strong structure and corrosion resistance as a welded metal fence, galvanized after welding, and then PVC coating.

2 - 358 fence specification

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersec

Wire diameter: 4 mm horizontal wire and vertical Wire.

Weld strength: range 540-690 N/m2

Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (min.

100 micron), or PVC powder painting.

It provides additional protection and increases the potential life span.

Colours: Green RAL 6005, or Black RAL 9005.

Installation: Overlapped 75 mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.

Fence Height(M) Panel Size(H*W) Post(H*Size*Thick) Clamp Bar(H*W*Thick) Inter or comer clamp No(PCS)

2 2007mmx2515mm 2700x60x60x2.5mm 2007mmx60x5.00mm 7 or 14

2.4 2400mmx2515mm 3100x60x60x2.5mm 2400mmx60x5.00mm 9 or 18

3 2997mmx2515mm 3800x80x80x2.5mm 2997mmx80x6.00mm 11 or 22

3.3 3302mmx2515mm 4200x80x80x2.5mm 3302mmx80x6.00mm 12 or 24

3.6 3607mmx2515mm 4500x100x60x3.0mm 3607mmx100x7.0mm 13 or 26

3.6 3607mmx2515mm 4500x100x100x3.0mm 3607mmx100x7.00mm 13 or 26

4.2 4204mmx2515mm 5200x100x100x4.0mm 4204mmx100x8.0mm 15 or 30

4.5 4496mmx2515mm 5500x100x100x5.0mm 4496mmx100x8.00mm 16 or 32

5.2 5207mmx2515mm 6200x120x120x5.0mm 5207mmx100x8.00mm 18 or 36
