Xinghong Welded Wire Mesh - China

Material:

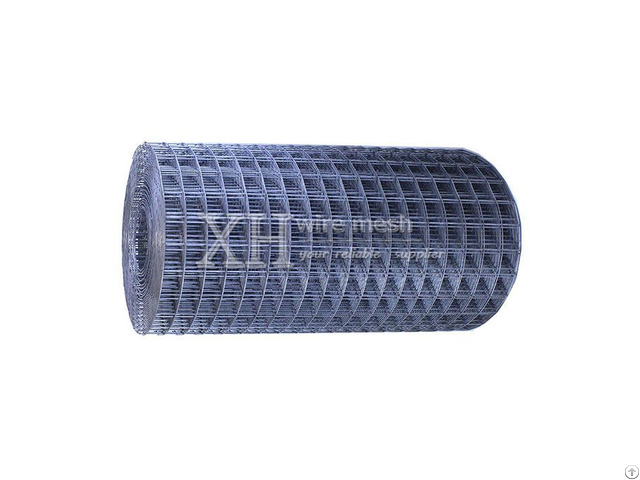

Galvanised welded mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.

Product Details:

Galvanised welded mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.

Designed for construction, building reinforcement and fences, it enjoys the feature of corrosion resistance compared with plain black iron welded mesh.

Galvanized welded mesh can be fabricated into constructional reinforcement panels, wire mesh partitions, shelves and cages.

Surface treatment:

hot-dipped galvanized, electro galvanized, PVC coated, painted, untreated.

Features:

strong welded points and bright luster.

The mesh doesnt come loose even if cut in parts or being.

exerted force on parts.

Compared with general iron wire, the products are better in respects of anti-corrosive and anti-rust.

Usage:

They are widely used in industry, agriculture, construction, transport and mining.

Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage etc.

Application:

The welded wire mesh can be used as poultry case, egg basket, passageway rail, waterspout, lobby

guardrail, rodentresistant net, mechanical shield, livestock and plants guardrail and fences, industry.

agriculture, construction, transportation and mining industry, etc.

Delivery Detail:

according to the quantity.

Packaging Details:

plastic film, pallet or according to customer's requirement.

Specification List of Welded Wire Mesh

Opening Wire Diameter

In inch In metric unit(mm) 1/4" x 1/4" 6.4mm x 6.4mm 22, 23, 24

3/8" x 3/8" 10.6mm x 10.6mm 19, 20, 21, 22

1/2" x 1/2" 12.7mm x 12.7mm 16, 17, 18, 19, 20, 21, 22, 23

5/8" x 5/8" 16mm x 16mm 18, 19, 20, 21, 3/4" x 3/4" 19.1mm x 19.1mm 16, 17, 18, 19, 20, 21

1" x 1/2" 25.4mm x 12.7mm 16, 17, 18, 19, 20, 21

1-1/2" x 1-1/2" 38mm x 38mm 14, 15, 16, 17, 18, 19

1" x 2" 25.4mm x 50.8mm 14, 15, 16

2" x 2" 50.8mm x 50.8mm 12, 13, 14, 15

2" x 4" 50.8mm x 101.6mm 12, 13, 14, 15

4" x 4" 101.6mm x 101.6mm 12, 13, 14, 15

4" x 6" 101.6mm x 152.4mm 12, 13, 14, 15

6" x 6" 152.4mm x 152.4mm 12, 13, 14, 15

6" x 8" 152.4mm x 203.2mm 12, 13, 14

Technical Note:

1, Standard roll length: 30m; width: 0.5m to 2.4m

2, Special sizes available at request

3, Packing: in waterproof paper in rolls.

Custom packing available at request.
