4kw Collapsible Electric Water Well Drilling Rig - China

price: 1200.00 Dollar US$

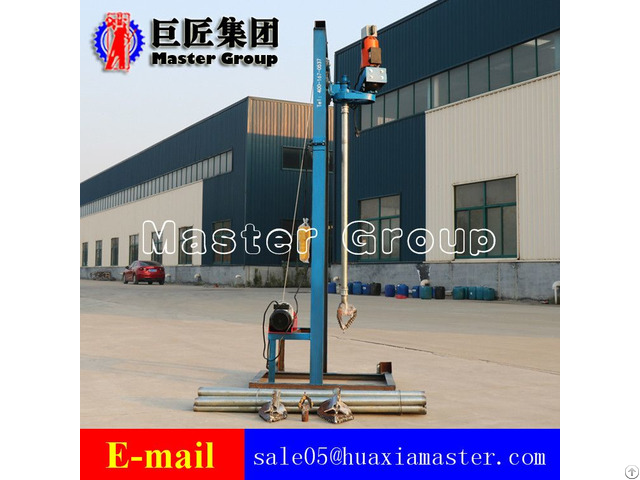

4kw Collapsible Electric Water Well Drilling Rig

Products Photos Catalog 4kw Collapsible Photos Catalog

1 - The brief introductions of collapsible portal frame small civilian electric well drilling rig

The collapsible portal frame small civilian electric well drilling rig is widely used in home / factory water wells, farmland irrigation wells, water and air conditioning, construction pile driving and so on.

2 - Specifications of collapsible portable frame small civilian electric well drilling rig.

Punching range: 60-250mm;

Drill pipe diameter: 1.2 inch;

Drilling depth: 100mm aperture can be 70 meters, 250mm aperture can be30meters.

Voltage: 220V

Rotary motor: 4000W;

Speed: 80r/min, can be positive and reverse;Lifting motor: 1000W;

The overall size of the whole machine is long 900mm, wide 700mm, high 2200mm (collapsible).

The weight of the whole machine is 70KG (including drilling frame / rotary motor / lifting motor).


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: October 23, 2018

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.
