Eccentric Overburden Casing System Drilling Tools For Sale - China

price: 675.00 Dollar US$

Eccentric Overburden Casing System Drilling Tools For Sale

Products Photos Catalog Eccentric Overburden Photos Catalog

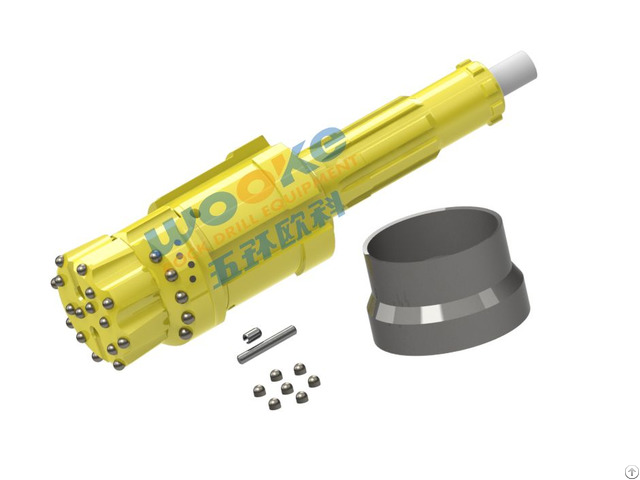

Eccentric Drilling Tools with Casing Tube Eccentric is the most economical solutions because its ingenious reaming wing the bit is retrievable can be used at the next hole.

This is particularly design for shallow holes, as is often the case in water well drilling, geothermal wells and for shallow micro-piling work.

Odex is ideal for short holes in consolidated overburden.

Eccentric Drilling Tools with casing tube step-by-step:

1 - When drilling, the PGZ(Eccentric Drilling Tools) reamer swings out and drills a hole wide enough for the casing tube to slide down behind the reamer.

2 - When required depth is reached, the dill is reversed and the reamer swings in, allowing the bit to pass through the casing.

3 - Casing tube is pulled out directly or fixed at the bottom of the hole by means of cement grout or other ragglutinant.

4 - Drilling continues to the desired depth using conventional DTH equipment.

3'' PGZ82-3.5-108/6: shank for TND-IR3.5 / DHD3.5 / TD3.5 hammer PGZ90-3.5-114/6: shank for TND-IR3.5 / DHD3.5 / TD3.5 hammer

4'' PGZ115-340-142/7: shank for TND-IR340 / DHD340A / TD4 hammer PGZ115-340-146/8: shank for TND-IR340 / DHD340A / TD4 hammer

5'' PGZ140-350-168/8: shank for TND-IR350 / DHD350R / DHD5 hammer PGZ145-350-178/9: shank for TND-IR350 / DHD350R / DHD5 hammer PGZ147-350-183/10: shank for TND-IR350 / DHD350R / DHD5 hammer

6'' PGZ165-360-195/6.5: shank for TND-IR360 / DHD360 / COP64 / DHD6 hammer PGZ180-360-219/12.5: shank for TND-IR360 / DHD360 / COP64 / DHD6 hammer PGZ190-360-219/7: shank for TND-IR360 / DHD360 / COP64 / DHD6 hammer

8'' PGZ230-380-273/11.5: shank for TND-IR380 / DHD380 / COP84 / DHD8 hammer PGZ240-380-273/6.5: shank for TND-IR380 / DHD380 / COP84 / DHD8 hammer


Company Contact:


  • Phone: +86-717-6262131

  • Address: Wujiagang Industrial Park, Yichang , Hubei , China

  • Email: Email


Published date: October 30, 2017

  • Business Description: Wooke is one of the leading and ISO9001: 2008 certified manufacturers of rock drill equipment established in 1995.

    Also we are one of the three biggest air pressure DTH drilling tools factories in China, as well as one of the best high-air-pressure DTH drilling tools manufacturers in China.

    We mainly produce and supply customers a variety of :

    --- High, medium and low air pressure DTH hammer and bits.

    --- API standard DTH drill pipes.

    --- Eccentric and symmetric casing systems.

    --- Hydraulic top hammers including tapered button bits, coupling sleeves and shank adapters.

    --- RC hammers and bits

    --- Kinds of adapters.

    All of our products have the features :

    * Capable of drilling in almost all ground conditions.

    * Designed for maximum performance

    * Made of quality steel with tungsten carbide buttons.

    * Percision machined and heat treated to the required hardness.

    When you purchase our drill tools, we are sure that you will be overwhelmingly satisfied with the performance and durability.

    Welcome to contact us via wooke.

    cyndee@gmail.

    com / WhatsApp: +8613277255863
