1 - About highling dredger:

Dredger is not self-propulsion, hydraulic cutter suction dredger

Pontoon part is made up of several boxes

Dredger equipments include sideslip device, cutter up and down device, location spud device, deck crane

Main engine is an independent entrainment form, one main pump engine, one auxiliary hydraulic engine

Dredger pump host output belt has clutch reduction function

Dredger pump is driven by the main gear decelerating box

Lighting and emergency power for stopping working will be offered by the generator set

Cutter will be driven by the motor and cutter bearing with lubricating sealing device

Hydraulic pump will be driven by the gear box through auxiliary engine

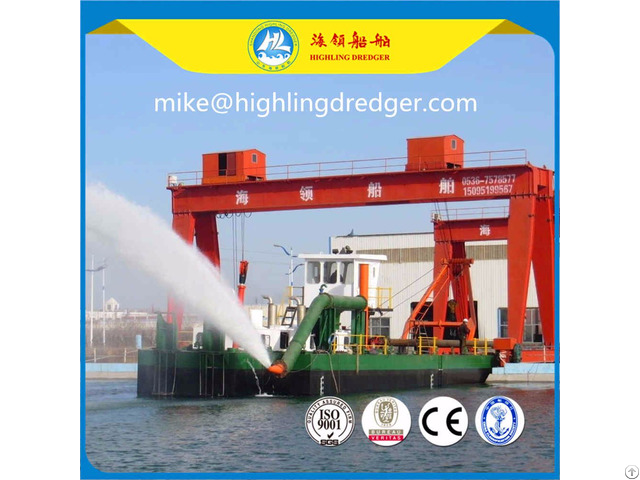

HL350 hydraulic cutter suction dredger (14inch 2000m3/h )

Dredger LOA 26.0m

Hull size(L×B×H) 19.0*7.5*2.0m

Main pontoon(L×B×H) 13.8*3.5*2.0m

Side pontoon (L×B×H) 19.0*2.0*2.0m

Structure Can be dismantle and re-assemble easily, box structure, lower delivery cost

Main engine brand & power Cummins /477kw

Auxiliary engine brand& power Cummins /224kw

Harbour generator 30kw/Cummins

Dredging pump Technology

Discharge pipe inner Dia.

350mm

Head 45m

Max.

dredging depth 11m

Water flow 2000m³/h

Solid sand capacity 400m³/h

Discharge distance 1500m

Cutter head Dia.

1450mm

Cutter power 70kw

Draught 1.4m

Displacement 180T

Hydraulic control system PLC Siemens

Wire rope pulling force (Lifting winch )*Quantity 80KN *1

Wire rope pulling force (Traversing winch )*Quantity 80KN *2

Operation room Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights

Total weight 90T
