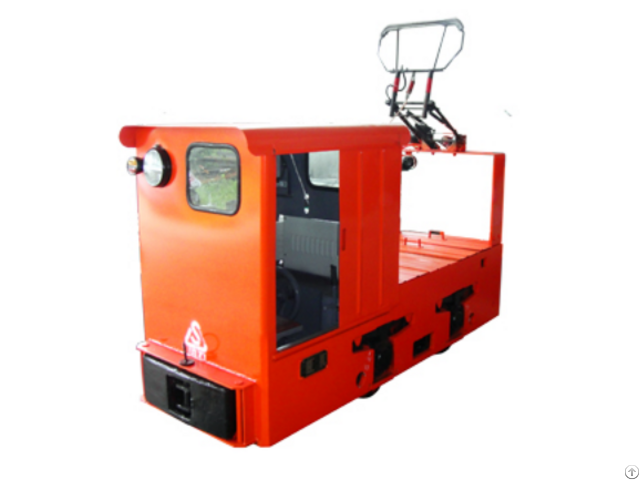

Chinese Small Trolley Locomotive For Mine Tunnel Transportation - China

Model Name: CJY3/6, 7, 9G(B) Adhesive Weight: 3 tons Track Gauge: 600, 762 or 900mm Hourly System Traction: 4.704kN, 6.1kN, 5.74kN

Max.

Traction: 7.36kN Hourly System Speed: 9.1km/h, 10.6km/h, 7.5km/h

Voltage: 250V, 550V, 250V

Power of Electric Motor: 12kW*1, 24kW*1, 6.5kW*2

Length: 2960mm, 2760mm

Width: 940, 920, 1082 or 1220mm Height: 1550mm Wheelbase: 816mm, 816mm, 850 mm

Wheel Diameter: Φ650mm, Φ650mm, Φ520 mm

Height of Pantograph: 1800~2000mm Height of Traction: 210 or 320mm Min.

Turning Radius: 5.7m, 5.7m, 6m

Speed Regulating Mode: Resistance or IGBT Braking Mode: Mechanical Brake Frame

Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings.

Speed control

In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.

Brakes

Mechanical brake to the four wheels by brake shoes.

Sanders

Pneumatic sanding system to the rails.

Buffers and motor suspension

The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Equally, the motor is suspended from the chassis by a spring brace.
