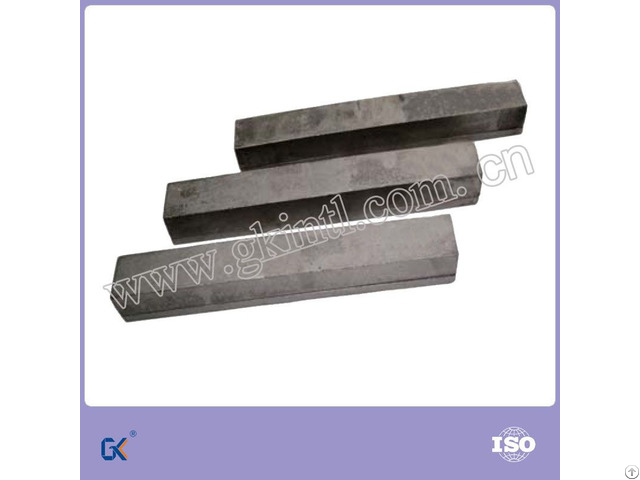

Composite A532 Mining Parts Wear Bar - China

We want to assist with your impact & abrasion challenges! Made of the lamination of chrome moly white iron bonded to a mild steel backing plate, the Wear bars are great time savers, with the ability to patch areas on machinery and equipment to help them last longer, reduce the downtime and increase productivity.

The chrome-moly white iron with finished minimum hardness of 63HRC or 700 BHN, delivers maximum abrasion protection, while the steel backing plate absorbs high impact and facilitates ease of fitting and use.

The bonding shear strength is over 30, 500 psi (or 210 Mpa) and will not separate.

Wear bar offer superior wear life when compared to conventional alloys such as manganese steel, Ni-hard and clad overlay strips.

Our Advantages

1 - 15 years’ experience in casting.

2 - Adequate capacity.

3 - Thorough examinations, tracking number on each product.

Standard wear bars available in thickness ranging from 25 to 100mm, widths from 25mm to 300mm and varying lengths.

Part No Type Size Dimensions Weight(kgs)

A B C D E

WB101 STD 102*33*33 102 33 25 8 33 0.9

WB102 STD 127*51*48 127 51 38 10 48 2.4

WB103 STD 150*50*50 150 50 40 10 50 2.9

WB104 STD 150*75*39 150 75 29 10 39 3.4

WB105 STD 150*75*50 150 75 40 10 50 4.4

WB106 STD 150*75*60 150 75 50 10 60 5.3

WB107 STD 153*38*33 153 38 25 8 33 1.5

WB108 STD 190*50*30 190 50 20 10 30 2.2

WB109 STD 194*80*50 194 80 38 12 50 6.1

WB110 STD 195*25*30 195 25 20 10 30 1.1

WB200 STD 200*25*25 200 25 15 10 25 1

WB201 STD 203*51*20 203 51 12 8 20 1.6

WB202 STD 210*50*50 210 50 38 12 50 4.1

WB203 STD 230*50*50 230 50 38 12 50 4.5

WB204 STD 241*100*58 241 100 38 20 58 11

WB205 STD 294*80*50 294 80 38 12 50 9.2

WB206 STD 250*60*20 250 60 12 8 20 2.4

WB207 STD 254*50*50 254 50 40 10 50 5

WB208 STD 254*51*20 254 51 12 8 20 2

WB209 STD 294*50*50 294 50 40 10 50 5.8

WB210 STD 200*75*75 200 75 63 12 75 8.9

WB211 STD 230*50*60 230 50 40 20 60 5.4

WB300 STD 300*25*25 300 25 15 10 25 1.5
