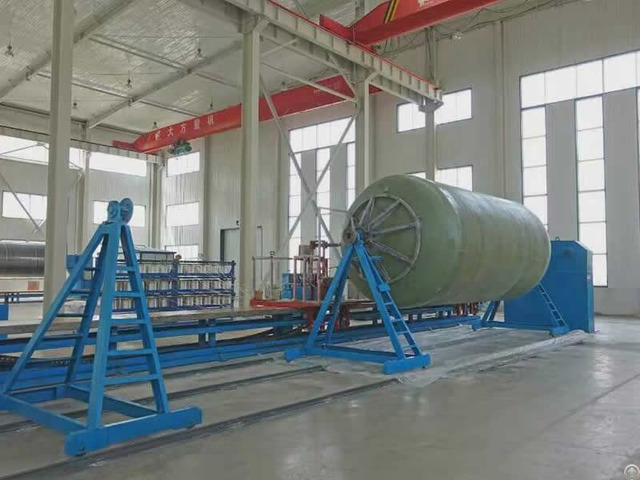

Horizontal Tank Winding Machine - China

price: contact company for price

DN4000-DN10000 Horizontal Tank Winding Machine Equipment configuration: main components of horizontal winding equipment: equipment head frame, equipment tailstock, drum, track frame, winding trolley and walking track, dipping equipment, roving creel and roving guiding system, computer control system, mould Group (customized according to customer needs).

Main technical parameters and characteristics: 1 - Winding diameter range: φ4000~φ10000 2 - Maximum height of the tank: 12000 3 - Max speed of trolley: 45m/min 4 - Maximum width of the yarn: 200mm 5 - Winding angle range: 0°~ 90° 6 - Total equipment capacity: 17.5KW±5KW 7 - The largest occupied area of equipment: 20000mmX20000mm 8 - Features: Due to the limitation of transportation capacity, all large-scale storage tanks with a diameter of more than 4m have become the difficulties of the processing party and the custom-made party.

In order to meet the needs of users, our company has developed the FW-10000 type micro-controlled horizontal field winding machine.

The structure of the machine is combined, it can be assembled and disassembled, the equipment is distributed to the user, and then according to the requirements of the user, the winding machine is installed next to the foundation of the storage tank to complete the winding production of the large FRP storage tank.


Company Contact:


  • Phone: 13303188070

  • Address: No.6 east of Rubber Road, Northern Industry Area, Hengshui, Hebei, China., hengshui , hebei , China

  • Email: Email


Published date: August 6, 2019

  • Business Description: Hengshui Fangchen FRP Equipment Technology Co.,Ltd. is located in the beautiful National Wetland Nature Reserve - Hengshui Lake.

    The company has convenient transportation and advanced communication with Jingjiu Railway, Shide Railway, Daguang expressway and Shihuang expressway pass through.

    Our company is the member of China Composite Industry Association and specialized in producing FRP equipment high-tech enterprises.

    The main products are: micro-control FRP production line, process pipe production line; cable pipe wrapping equipment, vertical and horizontal storage tank winding equipment, septic tank winding equipment, heating pipe, insulation tube winding equipment; equipment FRP pultruded profiles and a variety of molds.

    The company has a large number of experienced mechanical engineers , glass craftworkers, electrical engineers, software engineers.

    The company establishes a complex team, which specializing in the development of FRP equipment, innovation and manufacturing.

    The company adheres to the road that the colleges combine with the enterprises , and we cooperate with Tsinghua University for a long-term.

    The company has developed the most advanced control system,which successfully produced a new generation micro-control wet winding FRP equipment.

    The technology has a leadership position in domestic counterparts.

    Our production has been sold throughout the country and achieved a good reputation.
