Hot Sale Hl450 18 Inch Hydraulic Cutter Suction Dredger - China

Company information

Shandong Highling Dredging Group, established in 1992, Over 20 year’s development, we owe three subsidiaries.

The products are of a great variety, including 500-20000m³/h large scale dredger, Iron&Gold Mining Machinery, sand transportation ship, multi-function service work boat etc, which widely used in sand-excavating, river dredging, channel maintenance and broaden, desalting, blow fields stretched, port construction, etc.

All the products can be customized according to client’s requirements, formed a complete dredging machinery industry chain.

Product description

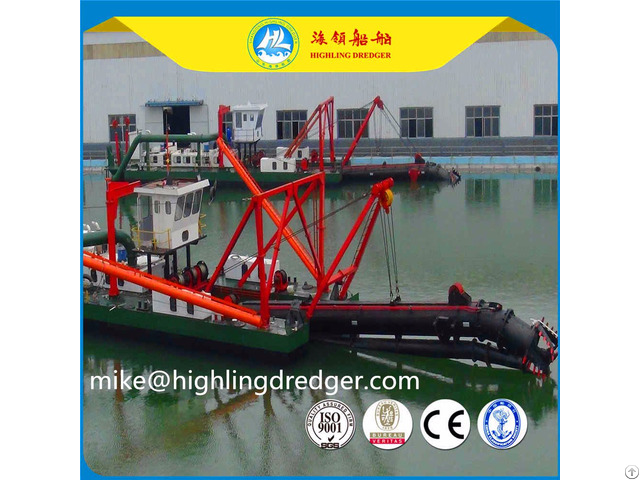

Cutter Suction Dredger is self-propelled or non-self-propelled, portable cutter suction dredger.

Hull can be dismantled and re-assemble easily with box structure.

Widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, reclamation for channels and land, port construction etc.

(1).

Main engine Every Highling Dredger is equipped with the following world class diesel engine, such as Cummins, Caterpillar, DEUTZ MAN-WMW, Weichai and so on, which can be guaranteed the after-sale service all over the world.

Customers can choose any one according to their requirements!

(2).

Dredge pump The dredge pump is high efficiency made from wear resistant casting impeller and liners fitted on heavy duty shaft and high quality roller bearings.

The impeller is fitted on the shaft by trapezoid thread directly machine on the shaft end.

The shaft sealing is a water cooled sealing that can be replaced after wear life.

The impeller is a special type of double curved vanes high efficiency and wear life optimized tested in laboratory and onboard of dredgers.

The impeller is fixed on the shaft by trapezoid thread machined directly in the impeller hub.

(3).

Cutter head The cutter motor is hydraulic driven low speed and high torque heavy duty design.

The cutter motor is mounted on the cutter front piece on the ladder end.

A special cover is provided to protect the motor from damage due to sand, rocks and debris.

The cover can be removed from easy inspection and maintenance.

Our service

1 - Services during the sale:

Make sure goods prepared within delivery time; Pre-check and accept products ahead of delivery; Prepare documents required to help customer pass customs clearance.

Help clients to make Project evaluation and feasibility analysis and draft solving plans.

2 - After-sale services:

Assist clients to prepare for the first construction scheme; install, debug and examine the equipment; train technical personnel the first-line operators; provide technical exchanging; offer spare parts at a best price for long term.

HL450

Dredger LOA 31.0m

Hull size(L×B×H) 23.0×7.5×2.5m

Main pontoon(L×B×H) 13.8×3.5×2.5m

Side pontoon (L×B×H) 22.0×2.0×2.5m

Structure Can be dismantle and re-assemble easily, box structure, lower delivery cost

Main engine brand & power Cummins /895kw

Auxiliary engine brand& power Cummins/224kw

Harbor generator 30GF/Cummins

Dredging pump Technology

Discharge pipe inner Dia.

450mm

Head 48m

Max.

dredging depth 14m

Water flow 3000m³/h

Solid sand capacity 600m³/h

Discharge distance 1500m

Cutter head Dia.

1500mm

Cutter power 80kw

Draught 1.7m

Displacement 224T

Hydraulic control system PLC Siemens

Wire rope pulling force (Lifting winch )*Quantity 80KN *1

Wire rope pulling force (Traversing winch )*Quantity 80KN *2

Operation room Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights

Total weight 180T

Total power 1119kw

Total fuel oil consumption 168L/H
