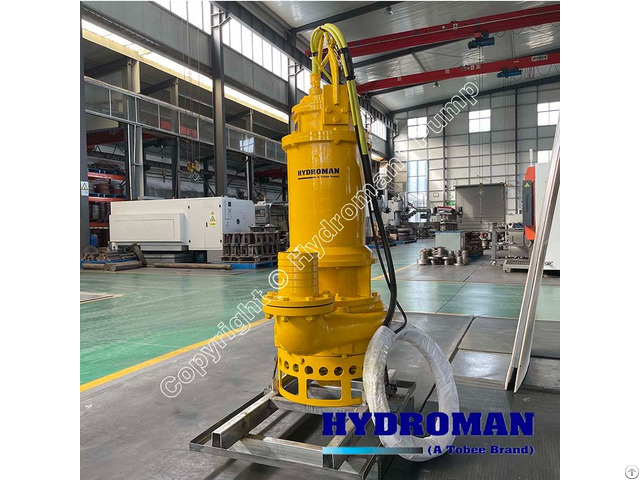

Hydroman® Submersible Sand Dredging Pump Highly Capacity For Ocean - China

hydroman® submersible sand dredging pump highly capacity for ocean is a customisable sump pumping solution that offers advanced submersible pump features for a variety of solids handling requirements.

the hydroman pump makes extensive use of tobee' finite element stress analysis and state of the art solids modelling to ensure reliable, long-wearing, solids handling capability.

hydroman submersible sand & gravel pump comes standard with indispensable time-saving features including a moisture detector for early detection of intrusion of fluid into the motor chamber or mechanical seal, and a t-bolt construction that allows for rapid disassembly of the pump end for maintenance access.

design features:

▪ motor: the cooling of the electric submersible sand & gravel pump is important.

if the submersible sand & gravel pump works semi-submerged or if it is going to work dry for extended periods of time, it should include a cooling jacket.

for heavy duty electric sand & gravel submersible pumps is recommended to have a motor with class h insulation.

they could include also high temperature and /or moisture sensors.

▪ impeller: the impeller is the rotating component of the submersible sand & gravel pump.

it transfers the centrifugal force to the slurry.

usually made of high-chrome alloy that is very abrasion resistant.

the impeller could be closed, semi-open, open or recessed.

▪ casing: the casing shape is generally of semi-volute or concentric.

it is normally made of high chrome alloy, but depending of the application could come with protective anti-corrosion coating, or could be made in special alloys for abrasive applications.

▪ shaft and bearing assembly: the shaft is used to transmit the rotatory movement from the motor to the impeller.

the shaft has heavy-duty roller bearings that prevent its displacement in other directions and reduce vibration.

▪ shaft sleeve: its function is to protect the shaft.

the shaft sleeve is made of corrosion and abrasion resistant material.

▪ seals package: the seals package prevents leakage of slurry into the submersible motor and bearings.

the seal package could be composed of lip seals, mechanical seals or hybrid seals.

▪ upper and lower wear plates: these plates are located over and below the impeller.

they are subject to wearing.

the calibration of their clearances maximizes the efficiency of the submersible pump.
