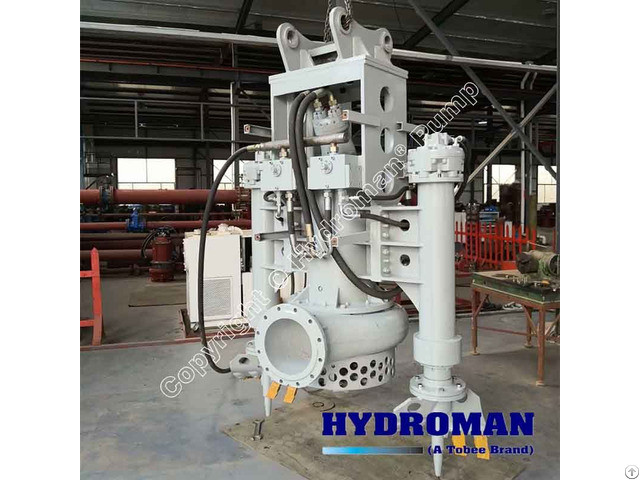

Hydroman® Submersible Vertical Sand Pump With Excavator Side Cutters - China

Hydroman® Submersible Vertical Sand Pump with Excavator Side Cutters can called hydraulic submersible agitator slurry pump, hydraulic submersible sand pump, hydraulic dredge pump, hydraulic sludge pump, hydraulic mud pump etc.

according to the differnet application, hyraulic submersible sand, sludge & slurry pump is a highly durable and reliable sand & slurry pump for dredging and transporting solids and a variety of other materials.

Agitator Slurry Submersible Pump is mainly used as an excavator attachment taking place of grab bucket when there is too much water, mud and not suitable for digging.

Hydraulic agitator submersible slurry dredging pump is driven by the excavator hydraulic system or a separate hydraulic station to pump sand, sludge mortar etc.

Tools like head cutter, side cutter heads and sand head (water jet) can be attached to hydraulic submersible slurry pump to to disaggregate and pick up sediments in a sluge of high density and high specific gravity.

Hydraulic drive submersible slurry pump is a highly efficient and modular sand, slurry & dredging hydraulic submersible pump unit, is designed for pumping sand, gravel, and rock notably in the mining and dredging industry.

Hydraulic Slurry Pumps are powered by excavators or hydraulic power units and are usually equipped with 2 or 3 agitator cutters to mix sediment materials for suction.

Hydroman® Hydraulic Submersible Sludge Pump with Side Agitators Specification: Size: 200mm

Capacity: 350-420m3/h

Head: 30-43m

Max.

particles: 60mm

Max.

concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc Hydroman® Hydraulic Submersible Sludge Pump with Side Agitators has the following advantages:

Hydraulic transmission movement inertia is small, fast reaction speed, submersible slurry sludge pump can achieve a wide range of stepless speed regulation;

Automatic overload protection, no motor burning phenomenon;

The extraction of sand slurry, sediment, slag and other solid concentration is high, hydraulic submersible tailings slurry pump can reach more than 70%;

Submersible Slurry Pumps connected to excavators and other machines with hydraulic system, can realize free transition, especially in remote areas of construction, power shortage, the advantage is more obvious;

Hydraulic Submersible Dredging Slurry Pump can be used as an accessory of the excavator, in the adverse digging when extraction and long-distance transportation, improve the value of the excavator itself.

Hydroman® Hydraulic Submersible Sludge Pump with Side Agitators Application:

Dredging in rivers, lakes, ports, shallow water areas, wetlands etc.

Extract mud, sand, gravel, etc.

Harbor Reclamation Project.

Mine slagging discharge from iron ore, tailings pond, etc.

Pumping sand, gold mining, etc.

Extracting slag, forging slag, sludge, and other industrial waste.
