Khyd140 Electric Motor Rock Drilling Rig For Coal Mine - China

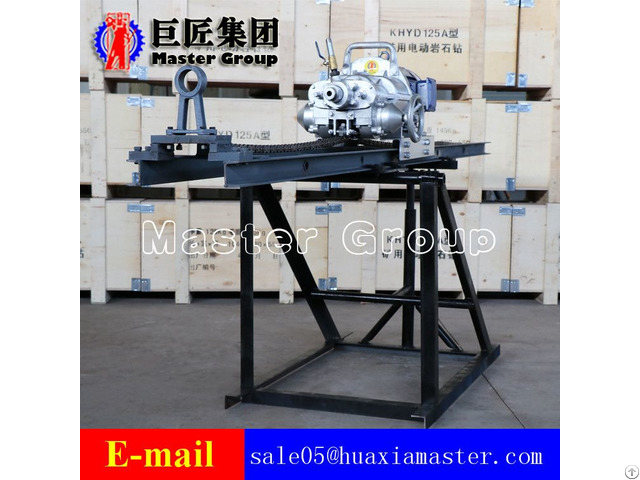

1 - The brief introductions of KHYD140 rock drilling rig

KHYD140 rock electric drill is a tool for rock blasting hole.

Drilling rigs should be equipped with drilling stand, and can be horizontally forward or inclined upward to drill in any direction.

In order to prolong the service life of drill bits and improve the working conditions of operators, water draining powder is called wet drilling.

In the operation of drilling rig, we only need to operate the hand wheel, and the drilling machine can push itself forward and return quickly.

2 - The specifications of KHYD140 rock drilling rig

Model KHYD140

Rated output power of electric motor kw 5.5

Rated voltage of electric motor v 380

Rated frequency of electric motor hz 50

Rated current of electric motor a 11.6

Motor rotating speed r/min 1440

Motor phase number three phase communication

Rated working mode continuity

Drilling speed mm/min 280

Maximum axial thrust n 12000

Borehole diameter mm 42-80(rock)

80~100(coal seam)

Hardness range protodikonov`s scale of hardness f<10

Maximum drilling depth m 20(rock)

30~80(coal seam)

Weight of drilling rig (excluding runways, drill pipes, drills) kg 100

Cable specifications equipped by buyer U 3x4+1x4
