Odex System Eccentric Casing With Three Pieces - China

price: 800.00 Dollar US$

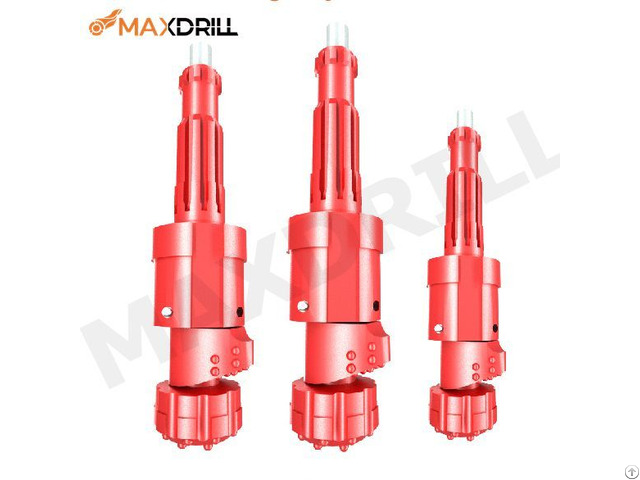

Odex System Eccentric Casing With Three Pieces

Products Photos Catalog Odex Eccentric Casing Photos Catalog

Odex system eccentric casing

application range:

the eccentric overburden drilling system is suitable for drilling water wells, geothermal wells, micro piles, and medium mini-type grouting holes in buildings, dams and harbor projects.

design principles:

the casing makes the drilling system easy to follow and operate.

outstanding advantages:

simple structure, easy operation, reliable quality, retrievable drilling tools, and long service life.

operation procedure 1 - as soon as the drilling starts, the reamer opens and enlarges the hole to drive the casing shoe and casing tube down.

2 - when drilling in over-burden formation is complete, start reverse circulation in order to close the reamer.

then pull up the assembly through the casing tube.

3 - the casing tube can be left in the hole, or can be pulled out by means of grout sealing material.

4 - use the normal drilling tools to drill and achieve the desired depth.


Company Contact:


  • Phone: 88639106

  • Address: 9F,Fuzhong International Plaza,#72 Xinhua Road,Nanming District, GuiYang , Guizhou , China

  • Email: Email

Published date: August 20, 2020

  • Business Description: MAXDRILL is a professional manufacturers of quality rock tools, such as button bits, Retrac bit, Integral drill steel, Tapered drill rod, Extension rod, Pneumatic rod, DTH hammer and bits, Shank adaptor, Coupling, Rock bolting, which serve in mining, quarry, water well, construction and slope stabilization industries.

    We serve customized design, production and serive according to worldwide clients different condition.

    We remain at your disposal for any further information you could require.
