Qz 2ageological Investigation Soil And Rock Taking Core Sample Drilling Rig - China

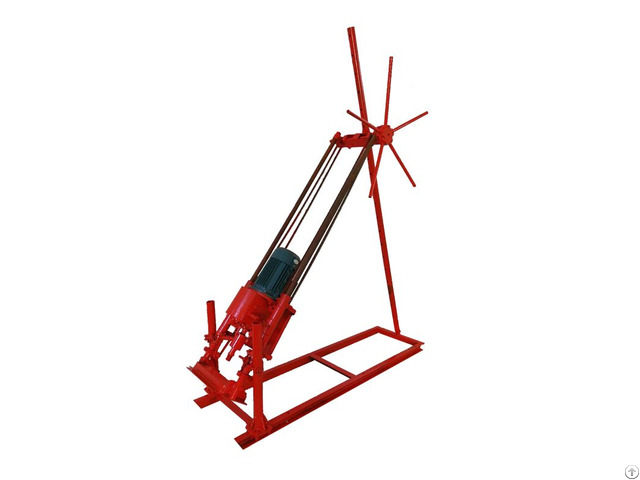

1 - Brief introduction of QZ-2A electric sampling drilling rig

QZ-2A type three-phase sampling drill rig is a portable core sampling drilling rig, produced by Shandong Master Machinery Group Co., Ltd. It is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geological exploration.

2 - Specifications of QZ-2A electric sampling drilling rig

QZ-2A electric sampling drilling rig

Borehole diameter (mm) 32-91 Drilling depth(m) layer 91：10-15m

rock 91：5-10m

rock 75：10-15m

rock 60：15-20m

rock 46：20-25m

Drilling pipe diameter (mm) 32

Rotate speed(r/min) 185-380

Torque(n.

m) 80

Power(kw) 3

Dimension(l*w*h) 600*450*1900

Weight(kg) 95
