Sand Excavating River Dredging Channel Maintenance And Broaden Desilting Etc - China

Cutter Suction Dredger is self-propelled or non-self-propelled, portable cutter suction dredger.

Hull can be dismantled and re-assemble easily with box structure equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane and so on.

Widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, reclamation for channels and land, port construction etc.

Advantage:

1 - Reliable and Efficient

The key component like engine, pump and hydraulic system are adopted the international brand.

2 - Tested in pool before delivery

We do quality test for every dredger before delivery to assure every part function properly.

3 - Services --experienced engineers to guide installing and training local workers.

24/7 technical support standby.

Free spare part in the first year, low cost for services.

4 - Dismantled and easy transport

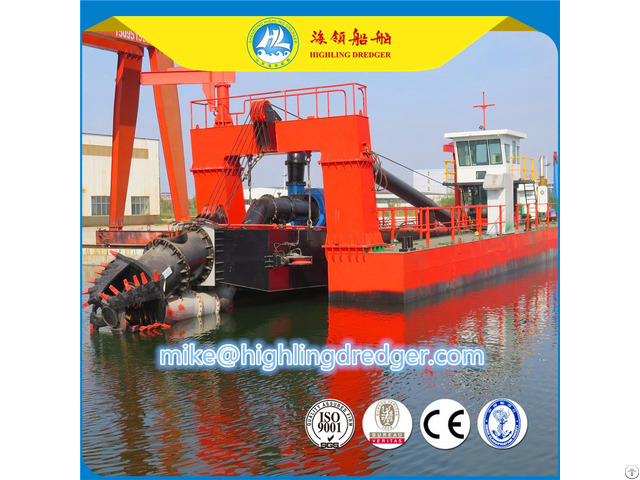

HL300 12inch 1500m3/h hydraulic cutter suction dredger

Dredger LOA 26.0m

Hull size(L×B×H) 19.0*6.2*2.0m

Main pontoon(L×B×H) 11.6*2.2*2.0m

Side pontoon (L×B×H) 16.0*2.0*2.0m

Structure Can be dismantle and re-assemble easily, box structure, lower delivery cost

Main engine brand & power Cummins /559kw

Auxiliary engine brand& power --

Harbour generator 20GF/Cummins

Dredging pump Technology

Discharge pipe inner Dia.

300mm

Head 40m

Max.

dredging depth 10m

Water flow 1500m³/h

Solid sand capacity 300m³/h

Discharge distance 1200m

Cutter head Dia.

1350mm

Cutter power 60kw

Draught 1.3m

Displacement 150T

Hydraulic control system PLC Siemens

Wire rope pulling force (Lifting winch )*Quantity 50KN *1

Wire rope pulling force (Traversing winch )*Quantity 50KN *2

Operation room Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights

Total weight 70T

Total power 559kw

Total fuel oil consumption 78L/H
