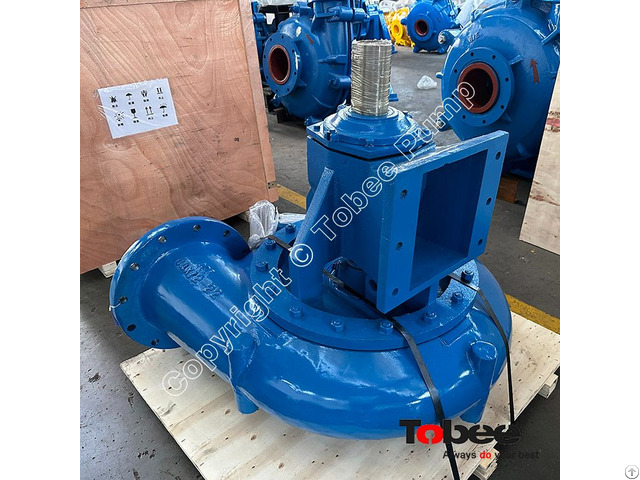

Tobee® Mission Electric Centrifugal Transfer Pump For Ash Or Coal Conveyers - China

Tobee® Mission Electric Centrifugal Transfer Pump for Ash or Coal Conveyers are ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive.

An excellent choice for high volume mobile and stationary applications where a small footprint is critical.

The low stuffing box pressure can increase seal life approximately 50%.

The extra-heavy shaft is designed for minimum deflection.

The heavy duty bearings are permanently lubricated to minimize maintenance.

SPECIFICATIONS:

• Sizes from 8x6x18, 12x10x23, and 14x12x22

• Flow rates from a few gallons per minute up to 7, 500 GPM

• Head pressure up to 540 feet

• Best utilized for applications requiring up to 500 HP

• Hard iron for high chrome for options

Design Features: √ Full-open wide impeller.

√ Long life no adjustment mechanical seal available for near zero leakage.

√ Thick, concentric casing with replaceable casing wear pad.

√ Hard iron and high chrome alloy material optional.

√ Large power to ensure large flow rates and head pressure up to 500ft.

√ Small footprint design is versatile for mobile and stationary application.

√ Working for fracking industrial standard and blending application.

√ Each casing is approved pressure test prior to delivery.

√ Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.

√ Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.

√ Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.

Company Contact:

• Posted By: HeBei Tobee Pump Co.,Limited

• Phone: 18132668739

• Address: Hi-tech Development Zone, Shijiazhuang City, Hebei , China

• Email:

• Website: https://www.hydroman.cn/

• Business Description: Hydroman was founded by Tobee in 2008's as a manufacturer of heavy duty submersible slurry pumps in North of China.

  Hydroman mainly specialized in submersible slurry pumps, submersible sand pumps, submersible dredging pumps, Submersible agitator slurry pumps, Submersible Dewatering Pumps, Submersible sludge pumps, Submersible sewage pumps, hydraulic slurry pumps, hydraulic submersible dredge pumps, Excavator mounted hydraulic dredge pumps and all accessories like cutterheads, agitators, strainers, cooling jackets, excavator, sparge rings and hydraulic oil station etc.
