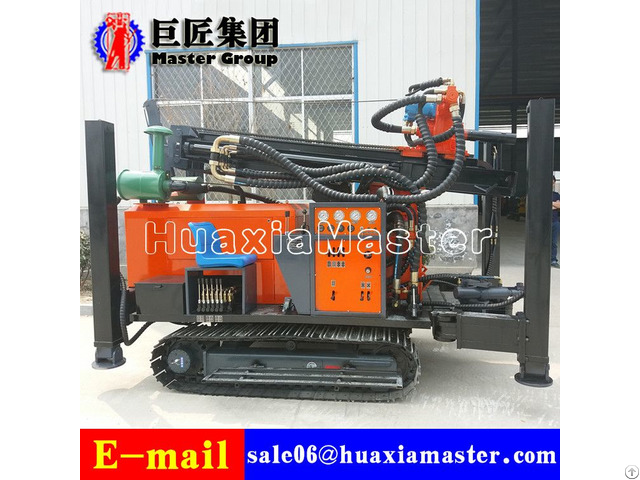

Fy260 Crawler Pneumatic Water Well Drilling Rig - China

Keywords: pneumatic rock drill, pneumatic press, crawler drilling rig, drilling machine water well, drilling rig water we, water well drilling rig, water well drilling machine, dth drilling machine, dth drilling rig, power hammer, borehole water well drilling rig, borehole drilling machine, water borehole drill, dth drilling rig, dth drilling machine

1 - The applications of FY260 crawler type gas drilling rig

civil engineering drilling, geothermal drilling, drilling with large diameter

deep drilling footage

fast, flexible and efficient.

2 - The specifications of FY260 crawler type gas drilling rig

Model FY260

Gross weight t 6.2

External dimension mm 3900*1950*2550

Aperture mm 140-325

Drilling depth m 260

Feed stroke mm 3000

Travel speed km/h 2.5

Grade ability max.

30°

Rising height from ground mm 250

Wind pressure mpa 1.7-3.0

Air consumption m³/min 17-35

Engine power kw 85

Rotary speed rpm 40-70

Rotation torque n.

m 7000-9000
