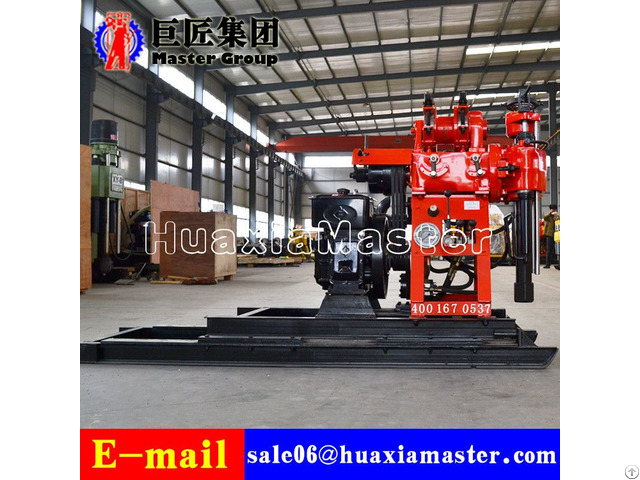

Hz 130yy 130 Meter Core Sampling Water Well Drilling Rig - China

1 - The brief introductions of HZ-130YY hydraulic drilling rig

On the basis of common drilling machine, The HZ-130YY hydraulic well drilling rig adds the shifting slide rail of the drill rig, which can realize rapid replacement of drilling tools and improve work efficiency and reduce labor usage.

2 - The applications of HZ-130YY rotary drilling rig

This drilling rig is suitable for drilling of wells drilling, Made in China water well, field irrigation well, engineering water well, precipitation well and so on; survey exploration, geophysical exploration, road and building exploration, and drilling blasting holes.

Drill bits such as alloy, diamond and composite plates can be selected for drilling according to differentassise.

It can drill 2-9 grades of sandy clay and rock.

3 - The features of HZ-130YY rotary drilling rig

The automatic feed mechanism with oil pressure can improve the drilling efficiency and reduce the labor intensity of the workers

The ball card holding mechanism is used instead of the chuck, which can be operated without stopping the rod, and the operation is convenient and safe and reliable.

The hoisting machine is equipped with a holding frame to form a double-sided supporting star wheel structure, can withstand strong impact.

Four groups of bearings are located in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complicated geological conditions such as the gravel layer, the pebble layer and so on.

This machine adopts the conical clutch of national patent technology, which has the prominent characteristics of large transmission torque, convenient operation and no maintenance.

4 - The specifications of HZ-130YY rotary drilling rig

HZ-130YY rotary drilling rig

Drilling depth 130m

Maximum opening hole diameter 75-220mm

End hole diameter 75mm

Driven-pipe diameter 53*59*4200mm

Drilling pipe diameter 50mm

Borehole angel 90°-75°

Power(diesel engine) 13.2kw

Drilling rotating speed 2200r/min

Weight dimension 850kg/2400*950*1400

Vertical shaft

Vertical rotating speed 142 285 570r/min

Vertical stroke 450mm

Windlass

Single rope lifting capability 9.6kn

Single rope lifting speed 0.41/ 0.82/1.64m/s

Drum diameter 140mm

Diameter of wire rope 9.3mm

Drum capacity 27m

Drilling rig tower

Rated load 2t

Effective height 6m

Tower leg specification 73mm

Mud pump

Model BW95

Flow rate 95l/min

Maximum pressure 1.2mpa

Reciprocating frequency 93times/min

Water Inlet pipe diameter 51mm*4.5m
