Hz 200y Hydraulic Rotary Diamond Core Drilling Rig - China

Keywords: portable diamond core drilling rig, rotary drilling machine, hydraulic press machine, hydraulic portable drilling rig

1 - Applications of HZ-200Y hydraulic drilling rig

Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.

2 - Features of HZ-200Y hydraulic drilling rig

adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.

the machine is equipped with national patent technology-taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.

for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.

3 - Specifications of HZ-200Y hydraulic drilling rig

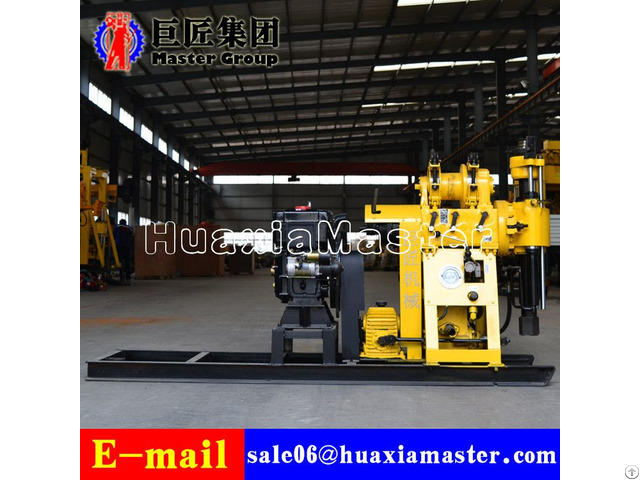

HZ-200Y hydraulic drilling rig

Drilling depth 200m

Max open hole caliber 300mm

End hole caliber 75mm

Drill rod caliber 50mm/60mm

Drilling angle 90°

Drill weight(without power) 1100kg

Triangle conveyer belt B950*4 B1700*3

The main machine moving distance 300mm

Power Diesel engine 22HP Electric motor 15kw

Spindle

Spindle speed 64/128/287/557 r/min

Spindle stroke 450mm

Hoist

Max.

lifting capacity 2400kg

Single line lifting speed 0.41/ 0.82/1.64 m/s

Wire rope caliber 13mm

Wire rope length 35m

Hug floodgate caliber 250mm/60mm

Hug floodgate belt width 70mm

Mud pump

Type Horizontal single-urn twin-action

Displacement Diesel engine 170L/min

Electric motor 150L/min

Maximum pressure 3Mpa

Work pressure 1.5Mpa

Inlet pipe caliber 40mm

Outlet pipe caliber 30mm

Triangle conveyer belt B1728mm

Mud pump

Type CBT—F—314

Triangle conveyer belt B1100× 1
