Jk520 Crawler Mounted Hydraulic Dth Drilling Rig - China

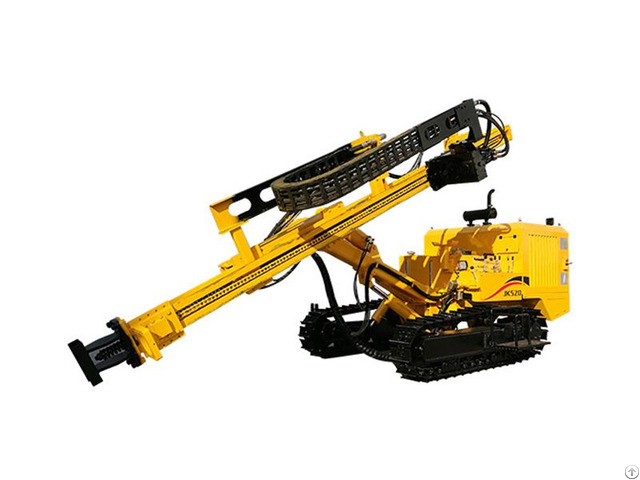

JK520 Crawler Mounted Hydraulic DTH Drilling Rig

Crawler Mounted Hydraulic DTH Drilling Rig

Crawler Mounted Drilling Rigs, Crawler Mounted DTH Drill Rig

It features its compact design, small footprint, and humanized operation.

Borehole Diameter

90-150mm

Site Condition

It is applicable to the blasting borehole drilling process of hydro project, open pit mining and road construction.

Product Features

JK520 internal combustion (electric) crawler mounted hydraulic DTH drilling rig is the latest updated product of the "Sharp Sword" series, specially designed for the hydropower project and quarry mining project.

JK520 can drill boreholes of various angles, ranging from horizontal angle to vertical angle.

It boasts its better performance, compact design, small footprint and humanized operation.

JK520 is equipped with environment-friendly dry type dust collector, and as long as water is accessible on working site, wet type dust collector is optional.

Model JK520

Borehole diameter 90-150mm

Borehole depth 40m

Applicable rock hardness f=6-20

Working air pressure 1.2-2.4MPa

Air consumption 11-21m³/min

Feeding stroke 3865mm

Rod-changing length 3m

Max.

horizontal drilling height 2510mm

Feed extension 1200mm

Ground clearance 300mm

Rotation rate 0-79rpm

Rotation torque 2500Nm

Travle speed 2Km/h, 3Km/h

Grade ability 25°

Power Yuchai 70KW

Dust collector (optional) Hydraulic dry dust collector Wet dust collector

Dimension (LxWxH) 7000mm×2250mm×2250mm


Weight 5800kg

Wired remote control Optional
