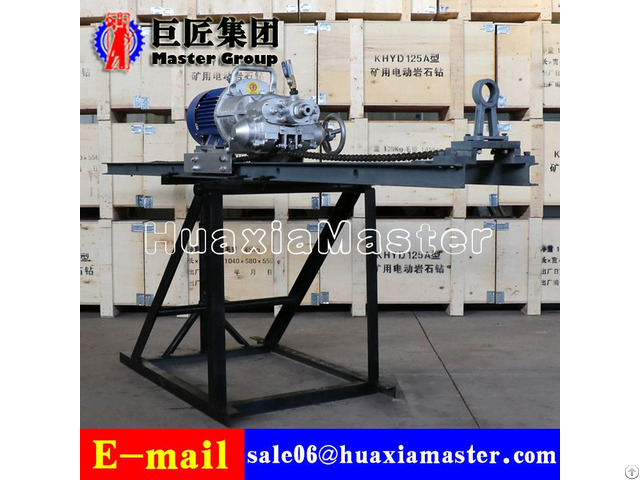

1 - The Brief Introductions of KHYD155 rock drilling machine

KHYD155 electric drill rock is a tool for rock blasting hole.

Drilling rigs should be equipped with drilling rigs, and can be drilled horizontally or inclined upward in any direction.

In order to prolong the service life of drill bits and improve the working conditions of operators, water draining powder is called wet drilling.

In the operation of drilling rig, we only need to operate the hand wheel, and the drilling machine can push itself forward and return quickly.

2 - The Specifications of KHYD155 rock drilling machine

Model KHYD155

Rated output power of motor (kw) 7.5

Rated voltage of motor (v) 380/660

Rated frequency of motor (hz) 50

Rated current of motor (a) 15.4

Motor rotating speed (r/min) 1440

Motor phase number three phase communication

Rated working mode continuity

Drilling speed (mm/min) 280

Borehole diameter (mm) 42-80(Rock stratum)

80-120(coal seam)

Hardness range (protodikonov`s scale of hardness) f<10

Drilling depth (m) of the maximum rock layer of drilling rig 25

Drilling depth of the maximum coal seam of a drilling rig (m) 40-100

Drill weight (kg) 155

cable specifications (equipped by user) (GB1170-74Soft cable for mining rubber) U type 3x4+1x4
