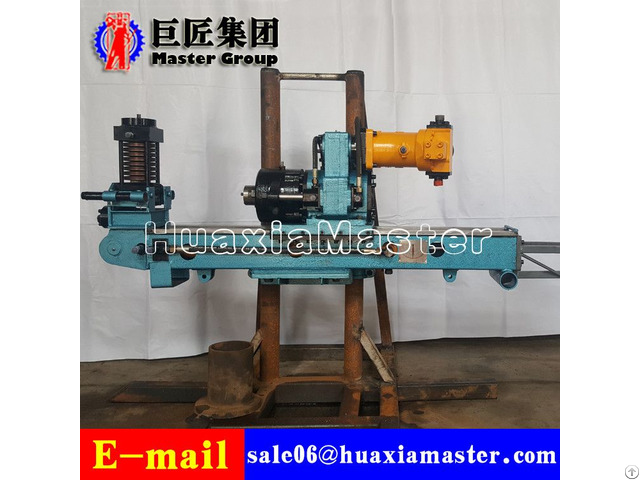

Ky 250 Full Hydraulic Metal Mine Exploration Tunnel Drilling Rig For Sale - China

Key words: KY-250, full hydraulic mine drilling rig,, prospecting drill, prospecting equipment, mineral prospecting equipment, geophysical prospecting instruments, prospecting drilling rig

1 - The brief introductions of KY-250 metal mine exploration drilling rig

The KY250 tunnel drilling rig is small in size light weight

convenient to install and operate

excellent linkage and adjustable speed range

suitable for drilling at any angle in the tunnel or surface.

2 - The specifications of KY-250 metal mine exploration drilling rig

Drilling diameter Φ36.5mm /Φ46.5mm

Drilling depth 250m(ø33 Steel drill rig)/200m(ø43 Steel drill rig)

Borehole angle 0°-360°

Spindle speed 400-1400r/min

Spindle output torque 150-400nm

Rated pulling force 40kn

Rated pulling speed ＞0.3m/s

Oil supply mode double gear pump

Rated system pressure 16mpa

Oil pump model CBF-F71/10

Hydraulic oil model antiwear hydraulic oil YB-N46/YB-N32 (winter)

Motor model manual variable motor A6V80MA

Motor specification 30kw

Weight main engine 275kg/backbone 40kg/operating floor86kg/power car 420kg
