Qtz 3d Mini Electric Soil Sampling Drilling Rig - China

1 - The brief introductions of QTZ-3D portable electric soil drilling rig

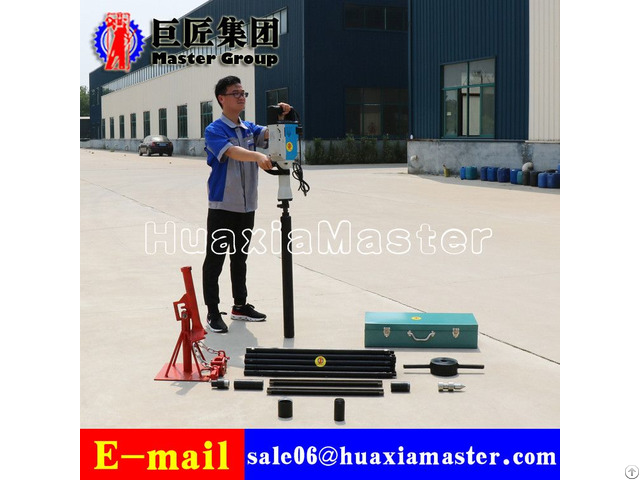

QTZ-3D portable electric soil drilling rig is an electric version of the QTZ-3 (gasoline engine) produced by Shandong Master Machinery Group Co., Ltd.

The improvement of QTZ-3D electric soil drilling rig is mainly engine system.

While QTZ-3 is equipped with gasoline engine, QTZ-3D is powered by electric.

The QTZ-3D soil drilling rig selects pure copper winding two phase electric motor as a power source.

The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment.

It greatly improves the feed speed.

In addition, QTZ-3D electric soil drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.

2 - The applications of QTZ-3D portable electric soil drilling rig

geotechnical investigation environmental soil survey

gricultural soil survey

groundwater survey

coastal geological survey

wetland environmental investigation

tailing pond investigation

archaeological investigation

physical chemistry exploration secondary halo sampling

the description of soil structure

3 - The specifications of QTZ-3D electric soil sampling drilling rig

QTZ-3D portable electric earth drilling rig

Voltage 220v

Power 3.6kw

Lighter way switch mode

Energy dissipation low power consumption

Impact times 2600r/min

Impact energy 60j-79j

Core depth 15m-20m

Host weight 22kg
