Seismic Cable For 428xl - China

price: 3.00 Dollar US$

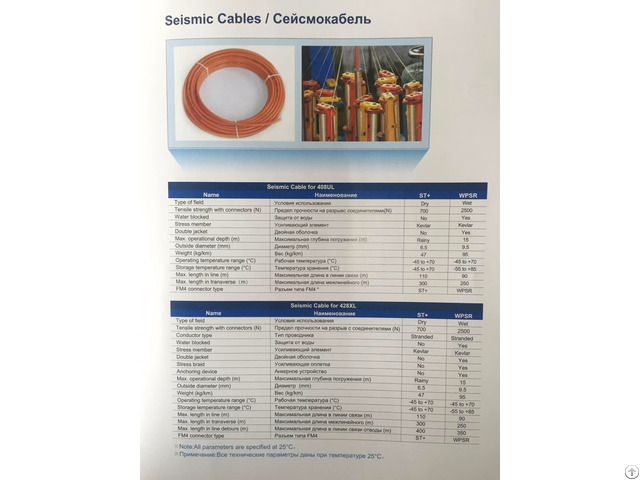

Seismic Cable For 428xl

Products Photos Catalog Seismic Cable 428xl Photos Catalog

Name ST+ WPSR

Type of field Dry Wet

Tensile strength

with connectors(N) 700 2500

Conductor type Sranded Sranded

Water blocked No Yes

Stress member Kevlar Kevlar

Double jacket No Yes

Stress braid No Yes

Anchoring device No Yes

Max.

operational Rainy 15

Depth(m)

Outside diameter 6.5 9.5

(mm)

Weight(kg/km) 47 95

Operating -45to+70 45to+70

temperature rang

Storage -45to+70 45to+70

temperature rang

Max.

length in 110 90

line(m)

Max.

length in 300 250

transverse(m)

Max.

length in 400 350

Line detours(m)

FM4 connector ST+ WPSR

Type


Company Contact:


  • Phone: 86-10-87576701

  • Address: Rm1205, 3rd Building, Soubao International Centre,No.16 Nansanhuanxi Rd, Fengtai District ,Beijing, , beijing , china , China

  • Email: Email


Published date: August 12, 2016

  • Business Description: Capacity：

    Based on dust free geophone element workshop and geophone string assembly line, ZF can manufacture 2.5 million geophone elements and 0.1 million typical geophone strings per year, while more that 1.09 million seismic connectors and other spare parts are manufactured by ZF every year.

    ZF cable department mainly produces geophone cables, seismic cables and custom cables, with a capacity up to 37, 000 KM of typical digital cables and leader wires per year.
