Xy 100 Core Borehole Hydraulic Water Well Drilling Rig - China

price: 1700.00 Dollar US$

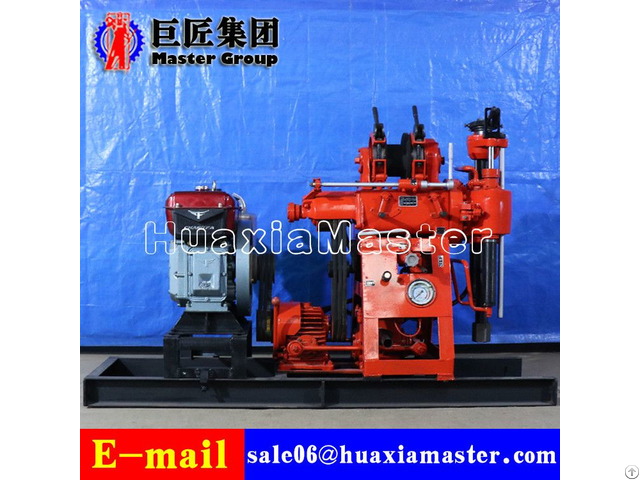

Xy 100 Core Borehole Hydraulic Water Well Drilling Rig

Products Photos Catalog 100 Core Borehole Photos Catalog

Keywords: geological exploration drilling machine, well drilling machine, core drilling machine

1 - The applications of XY-100 water well drilling rig

XY-100 water well drilling rig is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.

2 - The specifications of XY-100 drilling rig

Drilling depth 110

Maximum open hole diameter 220mm

End hole diameter 75mm

Drilling pipe diameter 50mm/42mm

Drilling angle 90

Drilling rig weight (exclude diesel engine) 610kg

Dimension 2.1*0.9*1.3m

Spindle

Rotating speed 130/300/480/730/830/1045 r/min

Stroke 450mm

Winch

Maximum lifting force 1600kg

Lifting speed 1.06/0.67/0.32 m/s

Wire-rope diameter 13mm

Roll capacity 50m

Mud pump

Type Horizontal single cylinder double acting

Displacement (with diesel engine/electric motor) 170l/min

Max.

pressure 1.5mpa

Work pressure 0.7mpa

Power

Diesel engine S1100

Electric motor Y160M-4 10KW


Company Contact:


  • Phone: 18865479510

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, Jining , 中国 , China

  • Email: Email


Published date: November 26, 2018

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.
