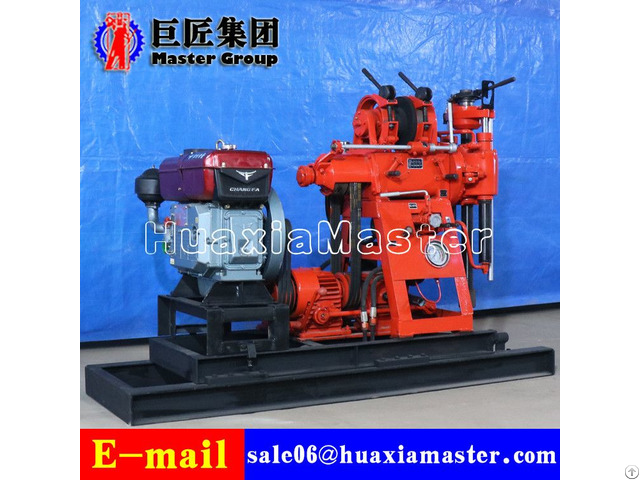

Xy 150 Mine Hydraulic Core Drilling Rig - China

Keywords: core drilling rig machine, core drilling rig for hard rock, mining core drilling machine, core sampling drilling rig, hydraulic press machine, geological prospecting rigs, water well drilling rig, drilling machine water well, hydraulic water well drilling rig, borehole drilling rig, diamond core sample 1 - Applications of XY-150 core drilling rig

geological survey

geophysical exploration

road and high-rise building foundation exploration

water wells

blasting holes and other drilling projects

2 - Parameters of XY-150 core drilling rig

Drilling depth(m) 150

Maximum opening diameter(mm) 219

The final hole diameter(mm) 73

Rod diameter(mm) 42/50

Spindle speed (r/min) 140/295/470/790/1010

Spindle stroke(mm) 450

Hoisting capacity (kn) 14

Steel wire diameter(mm) 9.3

Maximum pressure (mpa) 1.2

Working pressure (mpa) 0.7

displacement(l/min) 150

Hydraulic pump pressure (mpa) 1.2

Hydraulic pump rotation speed (r/min) 1800

Matched driving power (diesel engine and motor) S1105 diesel engine and 11kw motor
