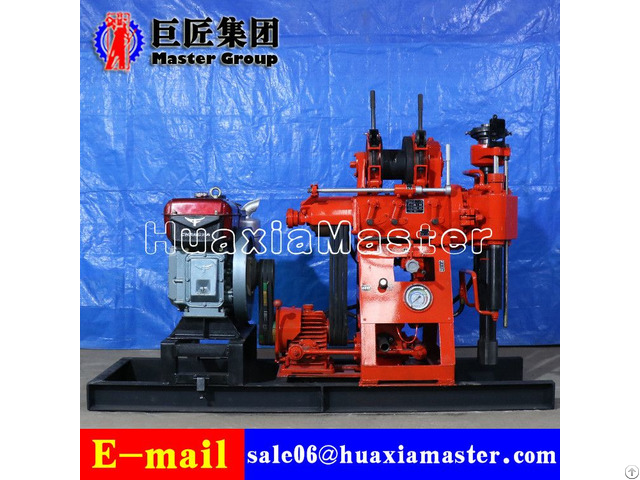

Xy 180 Hydraulic Rotary Borehole Drilling Rig - China

Keywords: water borehole drilling machine, core drilling machine, geological exploration drilling machine

1 - The features of XY-180 water well drilling rig

The XY-180 drill is designed on the basis of the XY-150 drill.

It is a low speed and high torque portable drilling machine with oil pressure.

This drill is suitable for engineering geological survey of railway, hydraulic power, traffic, bridge, dam foundation and other buildings.

Geological core drilling and physical investigation.

Drilling of small grouting holes and blasting holes.

A small water well drilled.

2 - The specifications of XY-180 drilling rig Drilling depth(m) 180/150/120/90/70/30

Borehole diameter(mm) 75/91/110/130/150/300

Maximum opening hole diameter(mm) 375

Drilling pipe diameter(mm) 42/50

Spindle rotation speed (r/min) 71/142/310/620

Spindle stroke(mm) 450

Winch lifting force (kn) 15

Wire-rope diameter(mm) 12

Pump type Gear pump

Model YBC-12/80

Rated pressure (mpa) 8

Rated rotation speed (r/m) 1500

Displacement(ml/r) 8

Matched power ZS1115 diesel engine and 15kw motor
