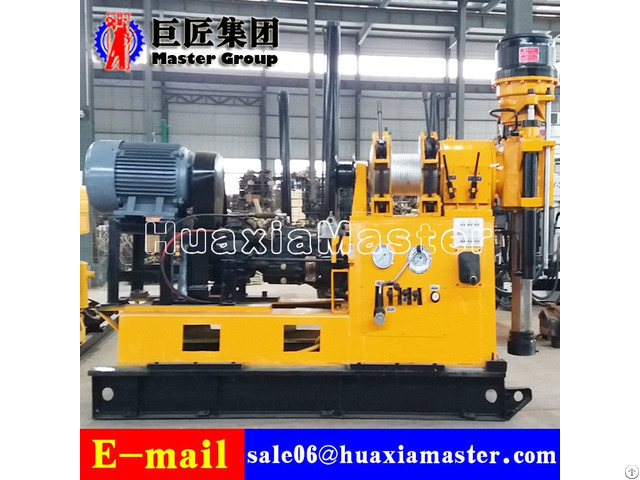

Xy 3 Diamond Core Earth Water Well Drilling Rig - China

Keywords: hydraulic press drilling machine, water borehole drilling machine, drilling rig water well

1 - The features of XY-3 bore well drilling machine XY-3 water well drilling machine adopts CG140 model auto transmission, with 10 rotation speed series and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, it’s high speed, strong stroke and wide scope of application.

With large torque, strong bearing capacity, it can realize long distance control speed change, and convenient operation.

The power of the installation is large, with two reverse speed, which is convenient to deal with accidents.

Equipped with normally closed hydraulic chuck, operation is flexible and reliable

It can realized the independent operation of the vertical shaft and the hoist The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod

2 - The specifications of XY-3 bore well drilling machine

Drilling depth 600m

Borehole diameter 300-75mm

Maximum open hole diameter 300mm

End hole diameter 75mm

Drilling pipe diameter 60mm

Drilling angle 90°-65°

Spindle

Rotating speed 30-1050r/min

Rotating stroke 29-137r/min

Stroke 600mm

Inner diameter 96mm

Lifting force 6000kg

Winch

Max.

single line lifting speed 0.5-1.9m/s

Wire rope diameter 12.5mm

Max.

single line lifting force 4000kg

Roll length 50m

Mud pump

Type horizontal three cylinder BW-250

Displacement 250L/min

Work pressure 80kgcm²

Water inlet pipe diameter 75mm

Water outlet pipe diameter 50mm

Gear Oil pump

Duplex gear oil pump CBF-F63/25

Displacement&press ure 63l/min&20mpa

Water outlet pipe diameter 25l/min 20mpa

Power

Diesel engine 39kw

Electric motor 22kw

Weight size

Weight 1800kg

Dimension 2500*900*1800mm
