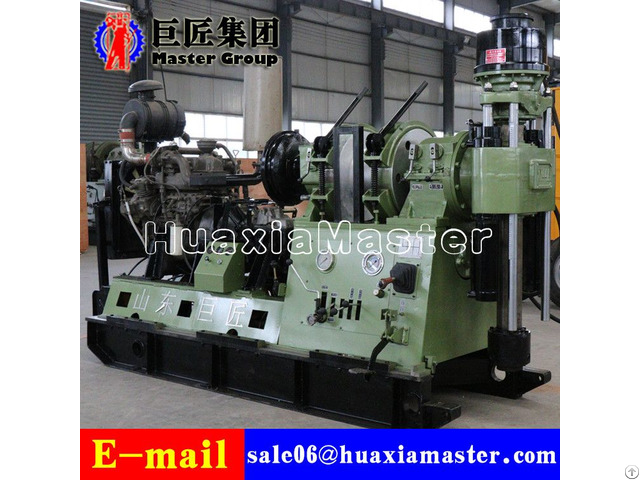

Xy 44a Water Well Drilling Rig Big Machine - China
price: 3500.00 Dollar US$
Keywords: big drilling machine, borehole drilling machine, well drilling rig
1 - The brief introductions of XY-44A water well drilling rig
XY-44A water well drilling rig is a multi-purpose spindle diamond drilling rig.
its suitable for high-speed medium and deep borehole drilling in complex rock formation.
Core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2 - Applications of XY-44 water well drilling rig
Made in China water well, field irrigation well, engineering water well, precipitation well and so on; core drilling, engineering geology exploration, hydrology as well as large diameter foundation piles construction.
3 - The specifications of XY-44A water well drilling machine XY-44A water well drilling rig
Drilling depth 600-1400m
Max open hole diameter 300mm
End hole diameter 75mm
Drilling pipe diameter 60mm
Drilling angle 90°-65°
Drill rig moving stroke 450mm
Spindle
Rotating speed ( diesel engine) forward 60/97/169/187/276/301/284 /487/521/847/1180/ 1490r/min reverse 65 201r/min
Rotating speed ( electric motor) forward 50/81/141/155/230/251/320 /406/434/706/984/1247r/mi n reverse 54 167r/min
Stroke 600mm
Maximum pressure 90kn
Spindle inner diameter 96mm
Lifting power 120kn
Windlass
Maximum.
lifting power of a single rope 45kn
Maximum lifting speed of a single rope 0-45m/s
Wire rope diameter 17.5-18.5mm
Windlass capacity In terms of wire rope length 90-110m
Drum diameter 140mm
Wire rope diameter 6mm
Wire rope length 450m
Mud pump
Type BW-250
Displacement 250 l/min
Work pressure 80kg/cm²
Water inlet pipe diameter 75 mm
Water outlet pipe diameter 50 mm
Power
Diesel engine YC4E135-1 100KW
Electric engine Y225S-4 37KW
