Xyc 200 Truck Mounted Hydraulic Water Well Drilling Rig - China

1 - The features of XYC-200 water well drilling rig

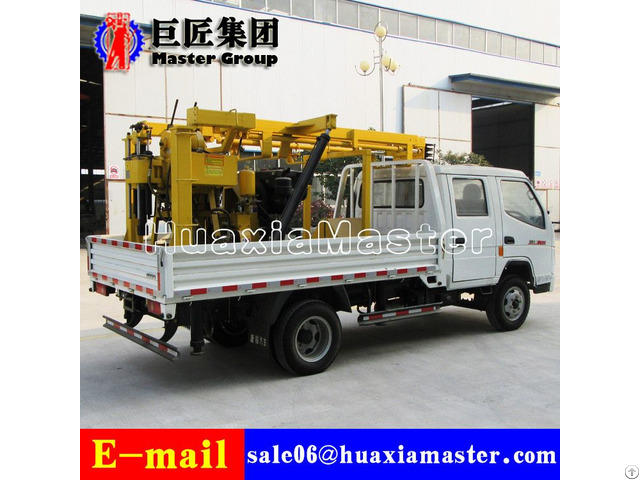

XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig.

The Tang Jun goldlika automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis, the layout is reasonable and compact, it’s easy to operate.

It configures BW160 mud pump, high pressure and big flow, which can ensure drilling depth and diameter.

The rig has shifting device, it can move on the vehicle, convenient to operate while drilling.

Hydraulic lifting and landing type automatic Telescopic drilling tower is safe and convenient to operate.

2 - The applications of XYC-200 vehicle drilling rig

3 - The specifications of XYC-200 water well drilling rig XYC-200 vehicle drilling rig

Drilling depth(m) 30-200

Drilling hole diameter(mm) 300-75

Drilling angel(mm) 90

Spindle rotating speed(r/min) 64/128/287/557

Spindle stroke(mm) 450

Windlass lifting power (single line)(Kg) 1600

Windlass capacity In terms of rope length 35

Windlass lifting speed(r/s) 17/35/75/151

Wire-rope diameter(mm) 12.5

Drilling tower height(mm) 7000

Drilling tower effective height(mm) 6500

Active drilling Pipe 59*53*4200mm

Drilling pipe (mm) 42/50/60

Drilling rig weight(kg) 1150

Engine model ZS1115 diesel

engine rated power 14.7kw/2200rpm BW-160 mud pump rated flow(l/min) 160 rated pressure(mpa) 1.3 driven power(kw) 5.15 main engine weight(kg) 190 External dimension(mm) 1110*725*965 Chassis model 95hp light truckdual row column plate light card

3.3 meterdual row column plate light card driven-type 4*2 Engine model quanchai 4B2-95C40 emission

standard GB3847-2005, GB17691-2005 rated power

(kw) 70 rotating speed

(r/min) 3200
