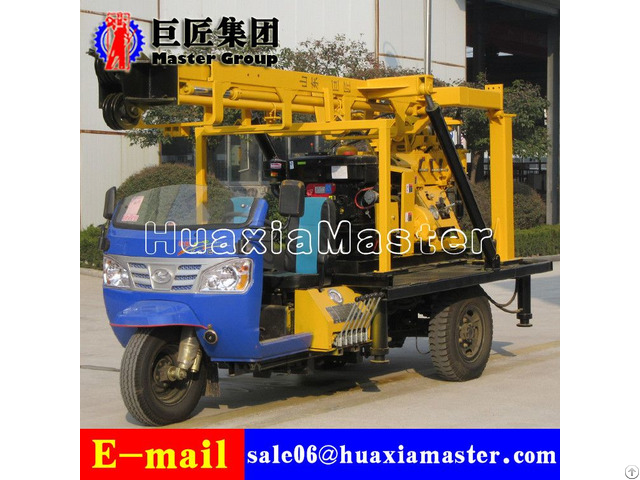

Xyc 200a Tricycle Core Borehole Water Well Drilling Rig - China

1 - The applications of XYC-200A tricycle water well drilling rig

XYC-200A tricycle water well drilling rig mainly used for Made in China water well, field irrigation well, engineering water well, precipitation well and so on; geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees.

2 - The features of XYC-200A tricycle water well drilling rig

XYC-200A tricycle water well drilling rigs is Multi-function hydraulic vehicle-mounted shaft rotary drilling machine .

The chassis of the vehicle is equipped with 7YD-1475DI, drilling rig drive system and important accessories such as hoisting and mud pump, which are reasonably compact and easy to operate.

XYC-200A drilling rig adopts BW160 pump, with high pressure and high flux, protectthe depth and hole diameter.

The tricycle drilling rig is equiped with shift unit, drilling rig can back and forward.

The highest speed can reach 1045r/min with 5 gears, improved drill efficiency

Adopted 53 x 59 drilling rod, high rigidity and strong delivery torque

Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.

Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.

3 - The specifications of XYC-200A tricycle drilling rig

Drilling depth 200m

Maximum open hole diameter 75-260mm

End hole diameter(mm) 75

Drilling pipe diameter 50mm/60mm

Drilling tower height 6500mm

Drilling angle 90

Effective height of drilling tower (mm) 6500mm

Rig weight 1150kg

Spindle

Spindle rotating speed 64/128/287/557r/min

Spindle stroke 450mm

Windlass

Lifting power (single rope) 1600kg

Lifting speed (single rope) 17/35/75/151r/min

Tightrope diameter 12.5mm

Tightrope cubic Measure 35mm

Hug floodgate belt width 70mm

Mud pump

Type BW160

Discharge/displacement 170l/min.

Diesel S1115 22HP

Electric motor 15kw, 1440r/min

Max.

pressure 1.5mpa

Work pressure 0.7mpa

Water inlet diameter 30mm

Water outlet diameter 25mm

Triangle conveyre belt B1728mm

Chassis

Chassis model tricar 7YP-1475D1

Drive mode Rear wheel drive

Engine brand Changchai ZS1115E2.

Rated power 16.2kw/2200rpm
