Xyd 130 Crawler Type Water Well Drilling Rig - China

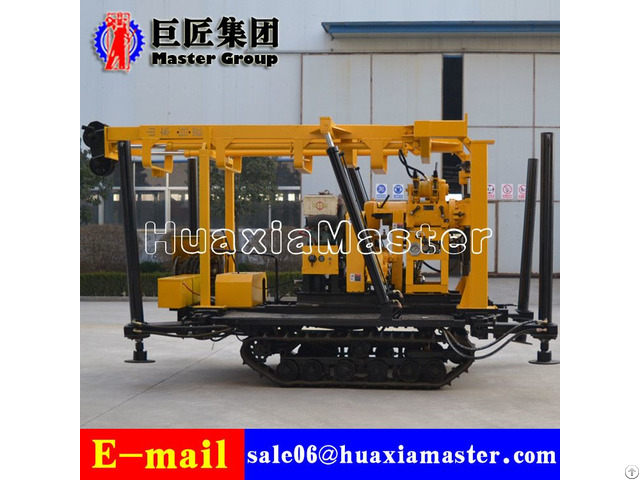

1 - The features of XYD-130 crawler drilling rig

The drilling machine adopts automatic Telescopic drilling tower, which is supported by two high-strength oil cylinders.

Save effort, safe and reliable, maximum for the user to create benefits.

The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce the vibration of the vehicle body, and reduce fuel consumption greatly.

It can walk on urban roads without hurting the road surface.

The chassis is equipped with four high-strength threaded legs (or hydraulic high leg).

The installation and adjustment is fast and convenient, it can be used for leveling of work plane, .

2 - The adoption of 48V electric starting diesel engine greatly reduces the labor intensity of the operator, especially in the cold season.

When the diesel engine starts difficult, it shows greate

r superiority.

2 - The specifications of XYD-130 crawler drilling rig XYD-130 crawler drilling rig

Drilling depth 130m

Maximum opening hole diameter 220mm

End hole diameter 75mm

Drilling pipe diameter 50mm

Drilling angle 90°

Drilling rig weight 2600kg

Vertical Spindle

Spindle rotating speed 142 285 570r/min

Spindle stroke 450mm

Windlass

Maximum lifting weight of a single rope 1600kg

Lifting speed of a single rope 0.41 0.82 1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Drum capacity 27 M

Mud pump

Model horizontal single urn twin-action

Displacement 9577l/min

Maximum pressure 1.2mpa

Working pressure 0.7mpa

Water inlet pipe diameter 30mm

Water outlet pipe diameter 20mm

Triangular belt diameter B1575mm
