Zlj700 Tunnel Drilling Equipment For Underground Coal Mine - China

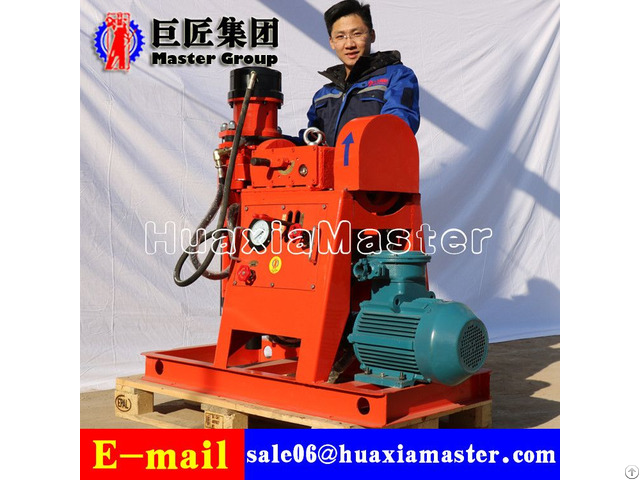

1 - The Brief Introductions of ZLJ700 tunnel drilling machine

ZLJ 700series coal mine tunnel drilling rig is mainly used for exploring water, exploring coal, drawing out methane, water injection dust control and other purposes in various kinds of angles.

It is also used for ground geological exploration, building foundation Reinforceand other purposes of drilling.

This drill rig adopts mechanical drive, hydraulic feed with small size, light weight, The rig is reliable and convenient to operate.

2 - The Specifications of ZLJ700 tunnel drilling machine

Drilling diameter 50-113mm

Vertical shaft rated output torque 700n.

m

Drilling depth 250m

Drill pipe diameter 42mm/50mm

Noncoring bit 76-108mm

Core bit 76-108mm

Vertical rated speed 385/219/ 123r/min

Vertical route 400mm

Rated pull out force 50kn(10mpa/hour)

Rated impetus 30kn(10mpa/hour)

Main shaft angle 0-360

Winch hoisting capacity 18/10/5.7kn

Winch single rope first floor lift speed 0.26/0.46/0.81 m/s

Drum capacity 40m

Wire rope diameter 11mm

Spring chuck USES pressure 8mpa

Spring chuck maximum clamping force 50kn

Oil pump model YBC-16/160

Oil pump rated pressure 16mpa

Oil pump rated flow 16l/min Electric motor model YBK2-160M-4 power(kw) 11 rotating speed(r/min) 1460 rated pressure(v) 380/660 rated flow(a) 26.6/13.1

Weight 800kg

Dimension 1480*680*1290mm
