Jk610 Crawler Mounted Blasting Borehole Drilling Rig - China

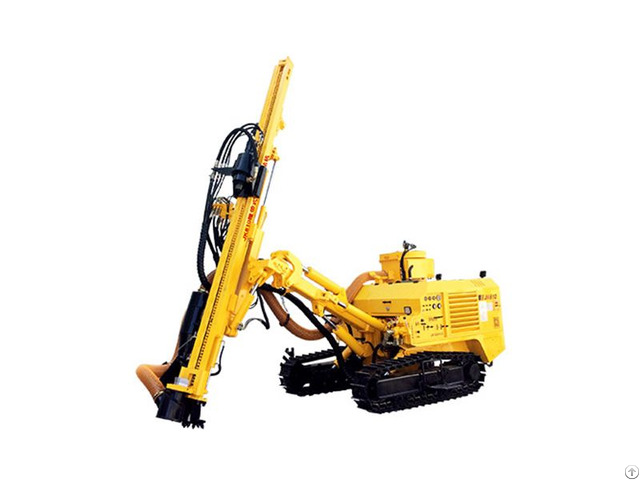

JK610 Crawler Mounted Blasting Borehole Drilling Rig

Crawler Mounted Hydraulic DTH Drilling Rig

borehole drilling machine In contrast with pneumatic drill rig, the air displacement of matched air compressor reduces 30% to 50%.

JK610 internal combustion (electric) crawler mounted hydraulic DTH drill rig, is the latest updated product of "Sharp Sword" series, featuring its better performance, lower operation cost and humanized design.

It adopts a 70kW Yuchai diesel engine and hydraulic oil pump station assembly to generate power, allowing rigs to rotation, propelling, lifting, walking and angle positioning.

During operation, only the percussive hammer consumes the compressed air.

In contrast with conventional pneumatic drilling rigs, JK610 consumes about 40% to 50% less energy (oil or electricity), and the air displacement of matched air compressor decreases 30% to 50%.

JK610 is equipped with dust collecting system, and wet type dust collector is optional as long as water is accessible on site.

JK610 is mainly applicable to blasting borehole drilling process of hydro project, open pit mining, quarrying, road construction and defense project.

Model JK610

Borehole diameter 90-165mm

Borehole depth 50m

Applicable rock hardness f=6-20

Working air pressure 1.2-2.4MPa

Air consumption 11-21m³/min

Feeding stroke 4148mm

Rod-changing length 3m

Max.

horizontal drilling height 3370mm

Rotation rate 0-60rpm

Rotation torque 3000Nm

Travle speed 2Km/h, 3Km/h

Grade ability 30°

Power Yuchai 70KW

Dust collector (optional) Hydraulic dry dust collector Wet dust collector

Dimension (LxWxH) 7000mm×2000mm×2500mm


Weight 6900kg

Wired remote control Optional
