Xy 200 Hydraulic Core Drilling Rig Machine Price - China

price: 14500.00 Dollar US$

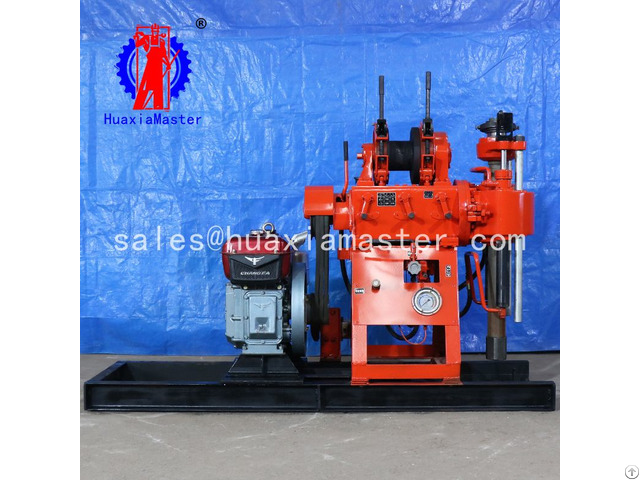

Xy 200 Hydraulic Core Drilling Rig Machine Price

Products Photos Catalog 200 Hydraulic Core Photos Catalog

1 - Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2 - Parameters of XY-200 hydraulic core drilling rig

Maximum borehole depth 200m

Maximum opening diameter 400mm

Diameter of the end hole 75mm

Borehole dip angle 90-75°

Machine overall size 2.75*0.95*1.60m

Drill pipe diameter 50mm

Weight of drill rig diameter of drill pipe (without power) 760kg

A vertical scroll of painting

Shaft rotation speed 71/142/310/20r/min

Vertical axis stroke 450mm

Windlass

Maximum lifting weight of single rope 2008kb

Drum lifting speed 17/35/75/160 rm/s

Wire rope diameter: 13mm

Wire rope capacity 35mm

Width of sluice 70mm

Power

Diesel oil 22hp

Rated speed 2200r/min

Electric machinery 15kw

Rated speed 1460r/min

Mud pump

Type: horizontal single cylinder double action flow：180L/min

Maximum pressure 1.5mpa

Working pressure 0.7mpa

Inlet size 50mm

Outlet pipe diameter 45mm


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: January 30, 2019

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.

    Our Products:

    - 4kw Collapsible Electric Water Well Drilling Rig

    - China Portable Automatic Water Well Drilling Rig

    - China Hz 130y Hydraulic Water Well Drilling Rig

    - China Hz 130yy Water Well Drilling Machine

    - Xyx 130 Water Well Hydraulic Press Drilling Machine
