Xyd 3 Crawler Hydraulic Core Drilling Rig For China - China

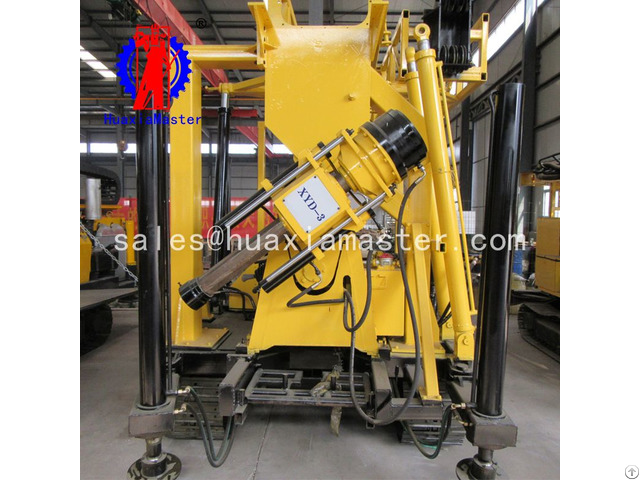

1 - Characteristics of XYD-3 crawler hydraulic core drilling rig

XYD-3 crawler hydraulic core drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth temperature central air-conditioner, ect.

·The drilling rig is equipped with crawler chassis device, which is easy to move with fast speed.

·The crawler device is made of resistant steel mill.

·Hydraulic oil pressure feed device, which improves drilling efficiency.

·Pressure gauge displays the condition of the bottom of the drill hole.

·Drill mast controlled by hydraulic cyliner so it improves the efficiency.

·Diesel engine adopts the electric starter to reduce the labor usage.

2 - Parameters of XYD-3 crawler hydraulic core drilling rig

Drilling depth 600m

Max.

open hole caliber 300mm

End hole caliber 75mm

Drilling rod diameter 60mm

Drilling angle 90°-75°

Spindle

Spindle forward speed 30-1050r/min

Spindle reverse speed 29-137r/min

Spindle stroke 600mm

Spindle inner diameter 96mm

Main Winch

Single line lifting speed 0.5/0.9/1.4/1.9m/s

Diameter of wire rope 12.5mm

Brake width 90mm

Drum diameter 300mm

The biggest single rope hoisting capacity 30kn

Mud pump

Type Horizontal triples BW-250 Mud Pump

Displacement 250 l/min

Water inlet diameter 75mm

Water outlet diameter 50mm

Power

Diesel engine 38kw

Electric motor Y180L—4 22KW

Weight 6500kg

Size 2500*900*1800mm Shandong Master Machinery Group Co., Ltd.
