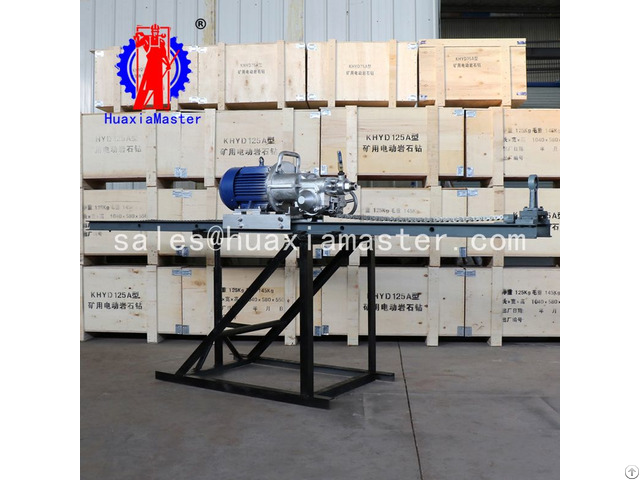

China Khyd75 3kw Electric Motor Rock Drilling Rig - China

1 - The brief introductions of KHYD75 rock drilling rig

In drilling operations, we only need to operate the handwheel, and the rig can advance and return quickly.

In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.

Drilling rigs can be fitted with drilling stand, and can be drilled horizontally or inclined upward.

2 - The specifications of KHYD75 rock drilling rig Model Unit KHYD75

Rated output power of electric motor kw 3

Rated voltage of electric motor v 380/660

Rated frequency of electric motor hz 50

Rated current of electric motor a 6.8/3.9

Motor rotating speed r/min 1420

Working mode continuity

Drilling speed mm/min 320

Rig return speed m/min Borehole diameter mm 42(rock)

Hardness range protodikonov`s scale of hardness f<10

Maximum drilling depth m 10(rock)

Weight of drilling rig (excluding runway, drill pipe, driller ) kg 75

Dimension (length * width *height) 720*378*436
