China Qz 1a Two Phase Electric Sampling Drilling Rig Price - China
price: 4560.00 Dollar US$

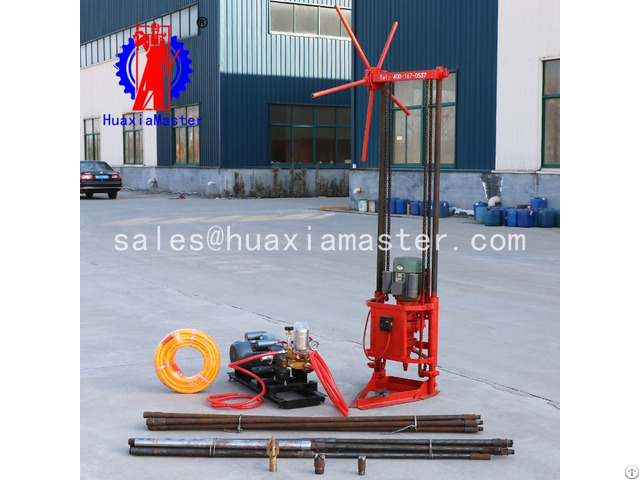

1 - Brief Introductions of QZ-1A core sampling rig
QZ-1A two-phase electric sampling drilling rig is a portable core sampling drilling rig produced by Shandong Master Machinery Group Co., Ltd. It is suitable for all kinds of geological exploration, like industrial and civil buildings, bridges, railways, roads and so on.
QZ-1A core sample drilling rig is only 80kg; height is less than 2 meters, and the drilling rig can been break down structure.
Hence it is easy to move and operated.
2 - Specifications of QZ-1A core sampling rig
QZ-1A core sampling rig
Drilling diameter 32-46
Drilling depth (m) Soil layer: 20-25
Lithosphere: 15-20
Drilling pipe diameter (mm) 25
Power (kw) 3
Rotate speed(r/min) 175
Torque (n.
m) 80
Weight (kg) 80
Dimensions (l*w*h) 600mm*450mm*1900mm
3 - The Configuration List of QZ-1A core sampling rig
Item Parameters Unit Quantity
Two phase electric drilling rig QZ-1A Set 1
Drill pipe 25*1500 pc 6
Drill pipe 25*800 pc 8
Joint 32 pc 14
Core barrel 32*800 pc 1
Alloy bit 32 pc 1
Reducing nipple 45/32 pc 1
Core barrel 45*800 pc 1
Alloy bit 46 pc 1
Three-wing bit 60 pc 1
Safety clamp pc 1
Water seal Y Type 30*45*8 pc 4
Control wheel Set 1
