China Qz 2ds Three Phase Core Drilling Rig Manufacturer - China
price: 5600.00 Dollar US$

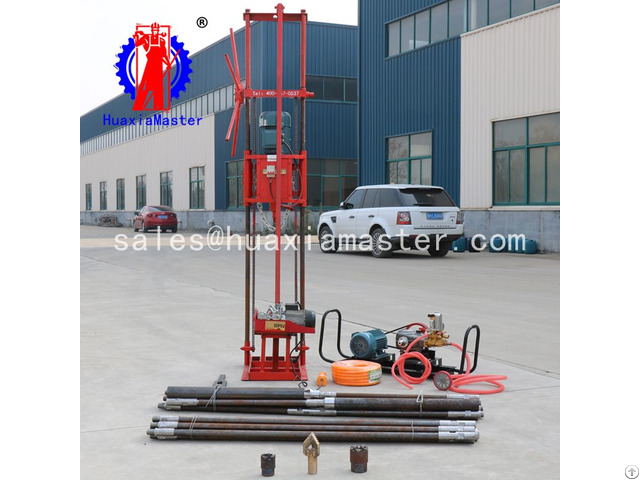

1 - The brief introductions of QZ-2DS three phase core drilling rig
QZ-2DS type portable sampling drill is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2DS drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2 - Specifications of QZ-2DS three phase core drilling rig
QZ-2DS drilling rig
End hole diameter (mm) 32-110
Drilling depth(m) soil 110:10m
soil 91:10-15m
stone 91:5-10m
stone 75:10-15m
stone 60:15-20m
stone 46:20-30m
Drilling pipe diameter (mm) 30 Three phase electric engine power 4kw model YX3-112M-4
Dimension(l*w*h) 600*650*2330
Weight(kg) 110
3 - Configuration List of QZ-2DS drilling rig
Item Parameter Unit Quantity
Three phase electric drilling rig QZ-2DS set 1
Drilling pipe 30*1500 pc 6
Drilling pipe 30*800 pc 14
Pipe joint 38 pc 20
Reducing nipple 58/38 pc 2
Core barrel 58*800 pc 1
Core barrel 58*1500 pc 1
Alloy bit 60 pc 1
Diamond bit 60 pc 1
Reducing nipple 73/38 pc 2
Core barrel 73*800 pc 1
Diamond bit 75 pc 1
Three-wing bit 75 pc 1
Alloy bit 75 pc 1
Safety clamp pc 1
Water seal Y 30*50*10 pc 4
Oil seal 30*50*10 pc 1
Pipe wrench 18 pc 2
Monkey wrench pc 1
Shaft snap ring clamp pc 1
Hole snap ring clamp pc 1
Pliers Pair 1
Hex wrench pc 1
Control wheel pc 1
Cross screwdriver pc 1
