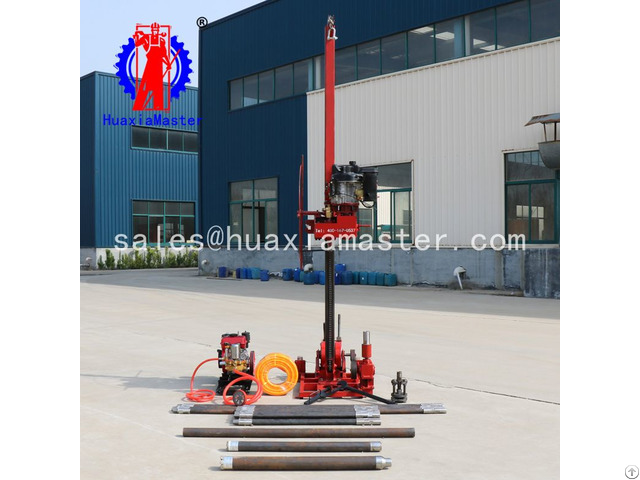

China Qz 3 Portable Geological Engineering Drilling Rig For Sale - China

price: 3800.00 Dollar US$

1 - The Brief Introductions of QZ-3 geological engineering drilling rig

The QZ-3 geological drilling rig is independently developed by Shandong Master Machinery Group Co., Ltd., which is a portable multi-purpose drilling rig.

The QZ-3 portable drill is equipped with a hoist, which is more convenient for geological drilling and lifting.

It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.

The QZ-3 portable geological drilling rig uses diesel power, and it is more convenient to purchase oil.

The rig is reasonable in design, advanced in structure, easy to assemble and disassemble, small in size, light in weight and easy to transport, which brings great convenience for field investigation and construction.

2 - The Specifications of QZ-3 geological engineering drilling rig

QZ-3 portable geological engineering drilling rig

Borehole diameter (mm) 46-110

Drilling depth(m) soil Layer 110:15-20m

lithosphere 91:20-25m

lithosphere 75:25-30m

lithosphere 60:30-40m

lithosphere 46:40-50m

Drilling pipe diameter (mm) 30

Torque(n.

m) 180

Weight(kg) 165

Dimension(l*w*h) 680*1200*3800(highly customizable)

3 - Configuration List of QZ-3

Item Specifications Unit Quantity Remarks

Base QZ-3 pc 1 Geological engineering drilling rig

Winding engine pc 1

Diesel engine pc 1 Gear box pc 1 Drilling tower pc 2 Manual windlass pc 1 Drilling pipe including joint 30*1000 pc 15 Drill pipe

Drilling pipe including joint 30*2000 pc 5 Reducing nipple 58/38 pc 1 60mm core drill tool

Core barrel 58*800 pc 1 Core barrel 58*1500 pc 1 Diamond bit 60 pc 1 Reducing nipple 73/38 pc 1 75mm core drill tool

Core barrel 73*800 pc 1 Diamond bit 75 pc 1 Safety clamp

Tool

Vulnerable parts

Pipe wrench

Safety plate pc 1 Drill rod tong Oil seal pc 2


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email


Published date: December 15, 2018

  • Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

    Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

    convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

    Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

    Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

    The group company mainly provides solutions for engineering and mine construction.

    With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

    And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

    The group company actively responds to the national "One Belt And One Road" policy to go abroad.

    Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

    Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

    It is a pleasure to have friends coming from afar.

    We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
