China Xy 8 Hydraulic Drilling Rig Manufacturer - China

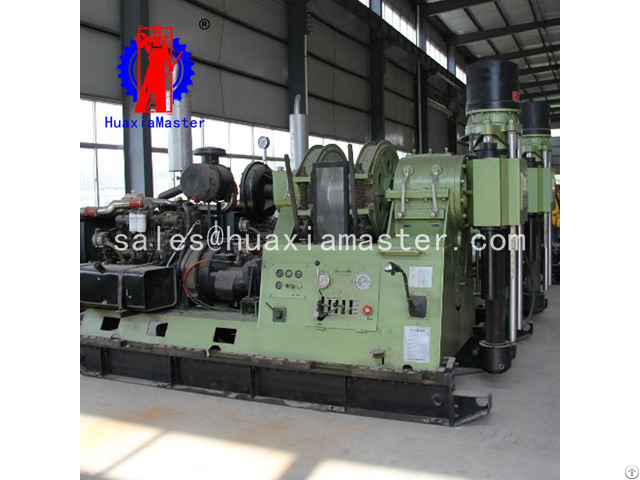

1 - Characteristic of XY-8 hydraulic drilling rig

Machine adopts pneumatic shift Fastgear 8JS118 auto transmission and clutch, compact structure, smooth operation, stable performance, good wild card.

Reasonable speed range and many speed radixes (8 forward speed, 1 reverse speed), with low-speed it has big torque (Max.

up to 8000N.

m).

Using auto-control flexible-shaft shift agency, we achieve the long-distance transmission shift.

The pneumatic shift is light and agile, and has the advantage of hommization.

Using concentrated forced lubrication system, as long as the rig runs, the separate lubrication oil pump starts working and sends lubrication oil to each node that requires lubrication.

When the oil lubricates drive mechanism, it will also take away the heat inside, (lubrication system with separate condenser), to prevent the components from heat caused by high-speed high-load state.

The rig adopts vertical shaft instead of the traditional hexagonal vertical shaft, exponentially increasing gyrator transmission efficiency and carrying capacity .

And new spindle shaft has big hole diameter (96 mm), with twin cylinder hydraulic feed the trip is much longer (up to 1000mm), especially suitable for large diameter drill pipe wireline coring, help to improve drilling efficiency and reduce the hole accident.

Light weight and can be disassembled to many parts, net weight 6500Kg.

The chuck is hydraulic-release normally closed hydraulic chuck, new structure, good compensatory.

Carbide inset&welded slip structure, has large clamping force, long life, reliable operation.

With water brake, in deep hole drilling, its safer and more smooth to put down the drill pipe.

Advanced and compact structure, reasonable layout, all components are revealed outside, do not overlap, ease of maintenance, maintenance and repair.

hydraulic oil is supplied by gear oil pump, less power consumption, and the hydraulic system oil temperature is low and stable work.

The system is equipped with a hand pump.

When power machine can not work, workers can still use hand pump to lift tools from the bottom of the hole, in order to avoid burying accidents

The rig has a low center of gravity and long backward stroke (up to 530mm).

Easy to be fixed on tower base, the rig has good stability in high-speed drilling.

With shockproof meter, its easy to observe hole situation.

Control-handles are in reasonable layout, operation is flexible and reliable.

2 - Parameters of XY-8 hydraulic drilling rig

Drilling Angel 0-360°

Electric Motor Y280S-4 /75KW

Diesel engine YC6A240-33/ 177KW

Spindle 96mm

Forward Speed 74/106/150/208/300/431


Reserve Speed 110rpm

Forward Speed 110/157/222/309/445/640/9 05/1256

Reserve Speed 74rpm

Max.

Torque of spindle 8000nm

Spindle stroke 800mm

Max.

lifting force of spindle 180kn

Max.

thrust of spindle 110kn

Type Planetary gear drive, hand brake

Wire rope caliber 21.5mm(6X19)

Drum capacity for rope 120m

Max.

lifting force(single rope) 60kn

Power unit rotary speed 1480rpm(m/s) 0.48/0.68/0.96/1.34/1.96/ 2.81/3.96/5.51

Power unit rotary speed 2300rpm(m/s) 0.71/1.01/1.42/1.99/2.91/ 4.17/5.88/8.19

Transmission Shanxi Fast Gear 8JS118 transmission and ancillary clutch, safe and reliable.

Oil Pump Type/ Model gear oil pump/ CB-32

Rotary speed 2500r/min

Displacement 32 ml/r

Work pressure 20mpa

Max.

pressure 25mpa

Direction of rotation Right(see from shaft end)

Work rotary speed 700-1800r/min

Single rope compensational speed 3-8m/s

Single rope compensational load 45kn

Form skids type(with sliding base)

Rig backward stroke 530mm

Dimensions(L*W*H) 3800*1500*2460mm

Rig weight 6500kg
