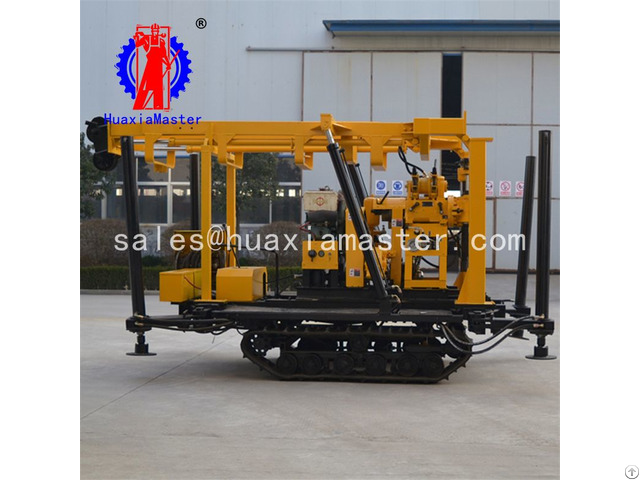

China Xyd 130 Crawler Hydraulic Rotary Drilling Rig Manufacturer - China

1 - The features of XYD-130 crawler hydraulic rotary drilling rig

The drilling rig adopts the automatic Telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.

The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly.

It can walk on urban roads without hurting the road surface.

The chassis is equipped with four high strength threaded legs (or hydraulic high leg).

The installation and adjustment is fast and convenient.

It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost and improves efficiency and works as auxiliary support.

The rig uses 48V electricty to start the diesel engine, which greatly reduces the labor usage, especially in the cold season.

When the diesel engine has difficulty activiting, this starting mode shows greater advantages.

2 - Technical parameters of XYD-130 crawler drilling rig

XYD-130 crawler drilling rig

Drilling depth 130m

Maximum opening diameter 220mm

Diameter of the end hole 75mm

Drilling rod caliber 50mm

Drilling angle 90°-75°

Drill weight (no include power) 2600kg

Spindle

Spindle speed 142/285/570 r/min

Spindle stroke 450mm

Hoist

Max single line hoisting capacity 1600kg

Single line lifting speed 0.41/0.82/1.64 m/s

Drum diameter 140mm

Wire rope diameter 13mm

Wire rope capacity 27m

Mud pump

Type horizontal single urn twin-action

Water inlet caliber 30mm

Water to exit caliber 20mm

Triangle conveyer belt B1575mm

Displacement 95 /77L/min

Work pressure 0.7mpa

Maximum pressure 1.2mpa
