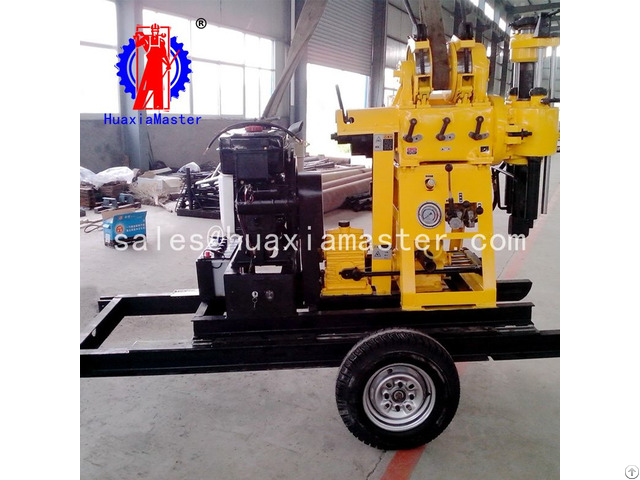

China Xyx 200 Wheeled Hydraulic Rotary Drilling Rig Manufacture - China

1 - Characteristic of XYX-200 wheeled drilling rig

hydraulic cylinder, high efficiency

pressure gauge display the condition of the bottom of the drill hole.

wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.

the machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

the working efficiency is high and the operation is convenient, safe and reliable.

2 - Parameters of XYX-200 wheeled drilling rig

XYX-200 wheeled drilling rig

Drill hole depth 200m

Maximum opening diameter 300mm

Drill pipe diameter 60mm

Final hole diameter 75mm

Borehole inclination 90°-75°

Rig weight (without power) 1300kg

Trigonometric belt B950*4 B1700*3

Active moving distance 300mm

Power Diesel engine/motor 22hp/16.2kw

A vertical scroll of painting

Shaft rotation speed 64/128/ 287/ 557 r/min

Vertical axis stroke 450mm

Windlass

Maximum lifting weight of single rope 2400kg

Single rope lifting speed 0.41/ 0.82/1.64m/s

Wire rope diameter 13mm

Wire rope capacity 35m

Hug floodgate caliber 260mm

Hug floodgate belt width 70mm

Mud pump

Type Horizontal single cylinder double action

Maximum displacement Diesel engine 170L/min

Matching motor 150L/min

Work pressure 1.5Mpa

Maximum pressure 3Mpa

Outlet pipe caliber 30mm

Inlet pipe caliber 40mm

Triangle conveyer belt B1728mm

Mud pump

Type CBT—F—314

Triangle conveyer belt B1100*1
