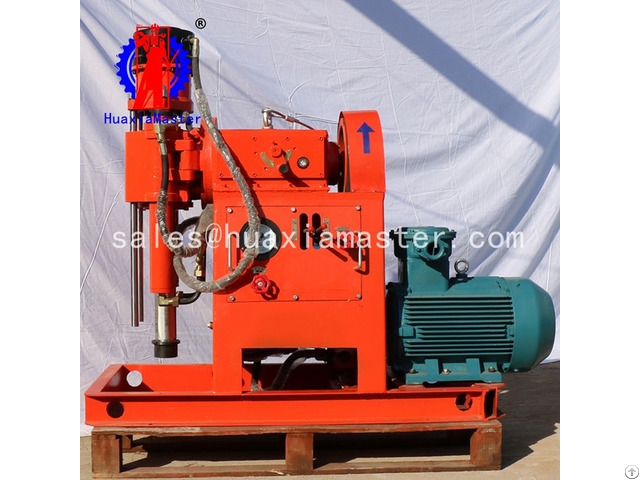

1 - The Brief Introductions of ZLJ650

ZLJ 650series coal mine tunnel drilling rig is mainly used for exploring water, exploring coal, drawing out methane, water injection dust control different kinds of engineering hole and geologic hole.

It can work in various kinds of angles .

This drill rig adopts mechanical drive, hydraulic feed with small size, light weight, The rig is reliable and convenient to operate.

2 - The Specifications of ZLJ650 Drilling bit diameter 50-Φ113mm

Drilling depth 300m

Drilling pipe diameter 42mm

Open hole diameter 76-Φ108mm

End hole diameter 56-Φ89mm

Rated torque top speed n·m 210 middle speed n·m 380 low speed n·m 650

Rated rotating speed top speed r/min 270 middle speed r/min 150 low speed r/min 90

Vertical rated speed 360/205/115r/min

Vertical shaft torque rating 130/230/400n.

m

Main shaft angle 0-360

Spindle stroke 400mm

System pressure rated 8mpa

Drum capacity 26.8m

Wire rope diameter 8.85mm

Winch lifting capacity 7.35kn

Feeding force 9kn

Elevating power 12kn

Oil pump type YBC-12/125

Motor power 7.5kw

Dimension 1300*650*1200mm

Drilling machine weight 650kg
